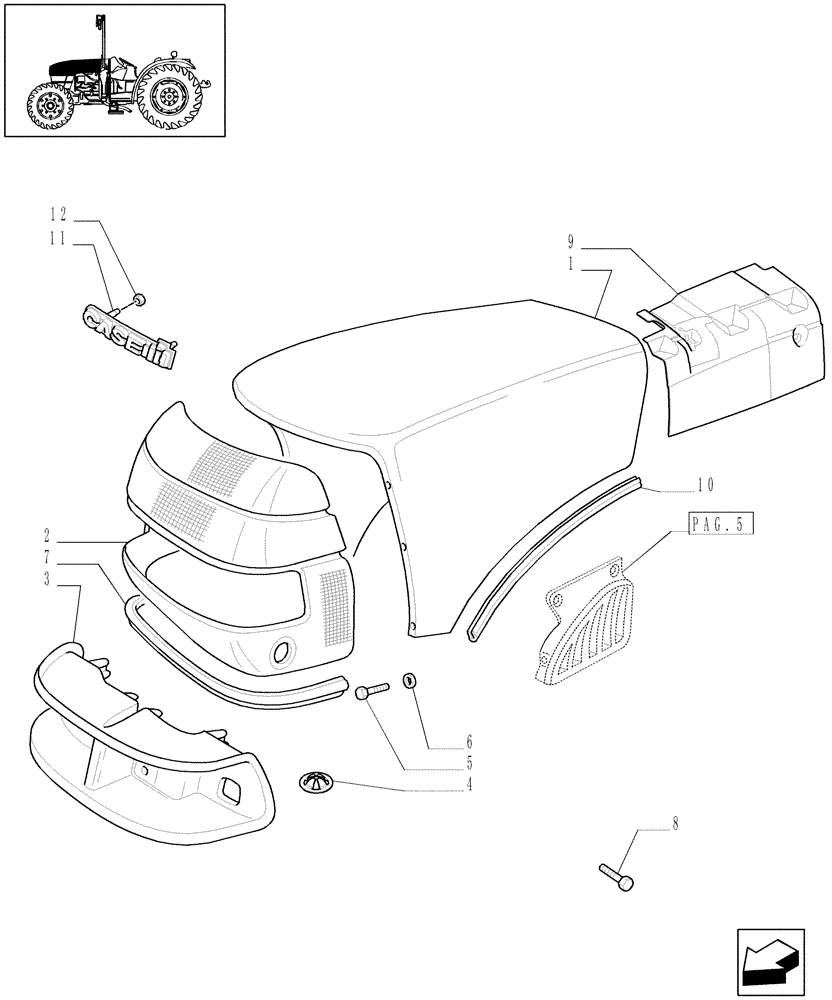

Запчасти Case IH JX1085C (1.83.0[01]) - HOODS (08) - SHEET METAL

1

47130006

COWLING

1шт.

2

47131803

GRILLE

1шт.

3

5199747

RADIATOR PANEL

1шт.

3

5199748

RADIATOR PANEL

VAR.007

1шт.

4

47126667

SPRING CLIP

7шт.

5

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

M6x10, VAR.007

3шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

6

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

VAR.007

3шт.

7

47130058

SEAL

Front

1шт.

8

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

6шт.

9

47130035

GUARD

1шт.

10

47130041

RUBBER STRIP

Side

2шт.

11

87716228

EMBLEM

, Start Serial: D5945

1шт.

12

86625060

PUSH-ON NUT,Self, Threading, 1/4"

, Start Serial: D5945

2шт.
