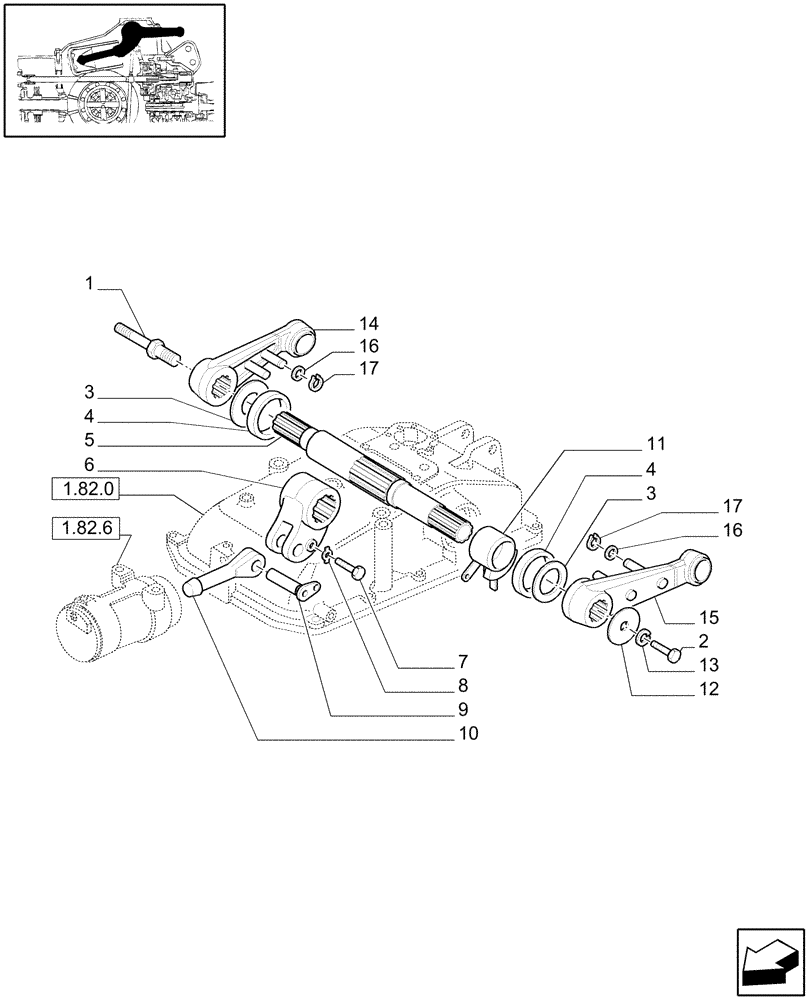

Запчасти Case IH JX1085C (1.82.8/02) - (VAR.929-929/1) TOWING HOOK (PICK-UP) AND DRAWBAR - CONNECTION SHAFT (07) - HYDRAULIC SYSTEM

1

5176285

BOLT,M10 X 1.25 X 23mm - M14 X 1.25 X 30mm

1шт.

2

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

1шт.

3

5125649

SPACER,47mm ID x 85mm OD x 6mm L

2шт.

4

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

48x65x10

2шт.

5

5176508

CONTROL SHAFT,50/43.5mm ID x 54.4/46.5mm OD x 428mm L, 42/60T

1шт.

6

5176633

ARM

1шт.

7

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

8

14198810

LOCKING PLATE,M10

D=10

1шт.

9

5176612

PIN,60mm L

1шт.

10

5121221

PISTON ROD,30mm OD x 174mm L

1шт.

11

5176643

RING,48mm ID x 63mm OD x 49.5mm Thk

W/Mech. Lift, VAR.929

1шт.

11

5196478

RING

W/Electr. Lift, Valid for 4WD W/Cab Only, VAR.929/1

1шт.

12

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

13

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

14

5180289

LIFT ARM

RH, W/Mech. Lift, VAR.929, Serial Range: -C6081

1шт.

14

87756882

LIFT ARM

RH, W/Electr. Lift, Valid for 4WD W/Cab Only, VAR.929/1, Start Serial: D6081

1шт.

14

5186780

LIFT ARM

RH, W/Electr. Lift, Valid for 4WD W/Cab Only, VAR.929/1

1шт.

15

5180290

LIFT ARM

LH

1шт.

16

5148062

THRUST WASHER

25.5x38x2

2шт.

17

11067374

CIRCLIP,M25

D=25

2шт.
