(1.82.75/01[02]) - (VAR.031) FRONT HPL W/PTO & BRAKES W/ELECT. CONTROL - ELECTRONIC FRONT HITCH PIPES

Запчасти Case IH JX1085C (1.82.75/01[02]) - (VAR.031) FRONT HPL W/PTO & BRAKES W/ELECT. CONTROL - ELECTRONIC FRONT HITCH PIPES (07) - HYDRAULIC SYSTEM

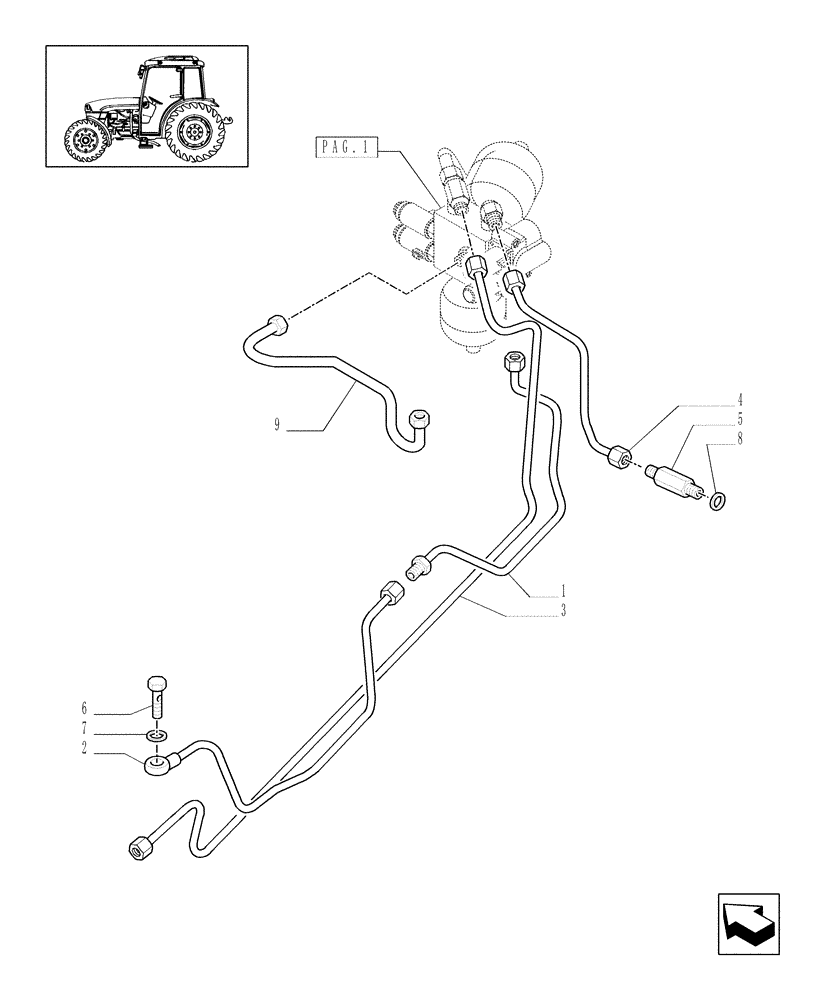

Схема запчастей Case IH JX1085C - (1.82.75/01[02]) - (VAR.031) FRONT HPL W/PTO & BRAKES W/ELECT. CONTROL - ELECTRONIC FRONT HITCH PIPES (07) - HYDRAULIC SYSTEM
pag.1
2
1
9
8
6
5
7
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47057151

RIGID TUBE

1шт.

2

5180602

RIGID TUBE

1шт.

3

87308624

RIGID TUBE,18 mm DIA x 1621.2 mm L

1шт.

4

47056866

RIGID TUBE

1шт.

5

5171534

HYD CONNECTOR,7/8" - 14 JIC x M18 x 1.5 ORB

1шт.

6

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22

1шт.

7

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7x30

2шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

47057153

RIGID TUBE

1шт.
