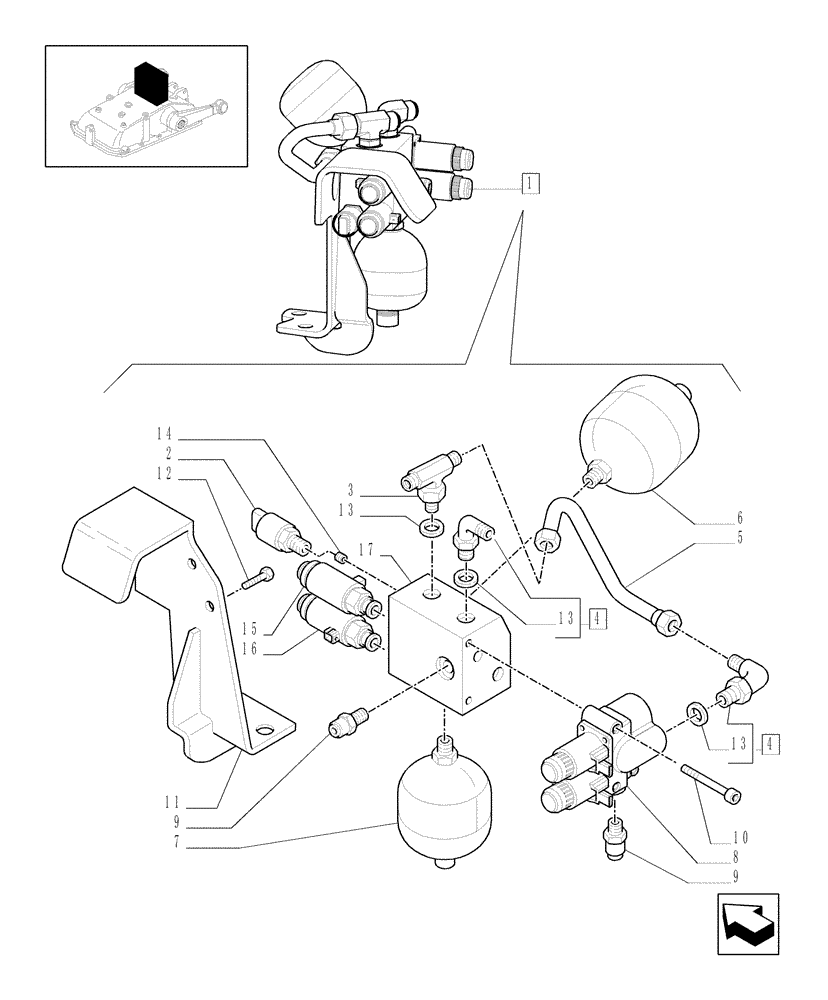

Запчасти Case IH JX1085C (1.82.75/01[01]) - (VAR.031) FRONT HPL W/PTO & BRAKES W/ELECT. CONTROL - ELECTRONIC FRONT HITCH BLOCK (07) - HYDRAULIC SYSTEM

1

47057172

BLOCK

ASSY

1шт.

2

47056255

SENSOR

1шт.

3

47057091

HYD CONNECTOR

1шт.

4

5148919

ELBOW

M22x1.5, 1-1/16"-12

2шт.

5

47057150

RIGID TUBE

1шт.

6

47057088

ACCUMULATOR,40 Bar, 0.5L

1шт.

7

47056250

ACCUMULATOR

1шт.

8

47057022

HYDRAULIC VALVE

1шт.

9

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

2шт.

10

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

3шт.

11

47057089

BRACKET

1шт.

12

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

14

47056252

PLUG,Koening expander sealing stuff

6mm OD x 8.6mm Thk

1шт.

14

97220175

PLUG

7.93mm OD

1шт.

Alternative Part

1шт.

15

47056249

HYDRAULIC VALVE

1шт.

16

47056248

HYDRAULIC VALVE

1шт.

17

47057175

BODY

1шт.
