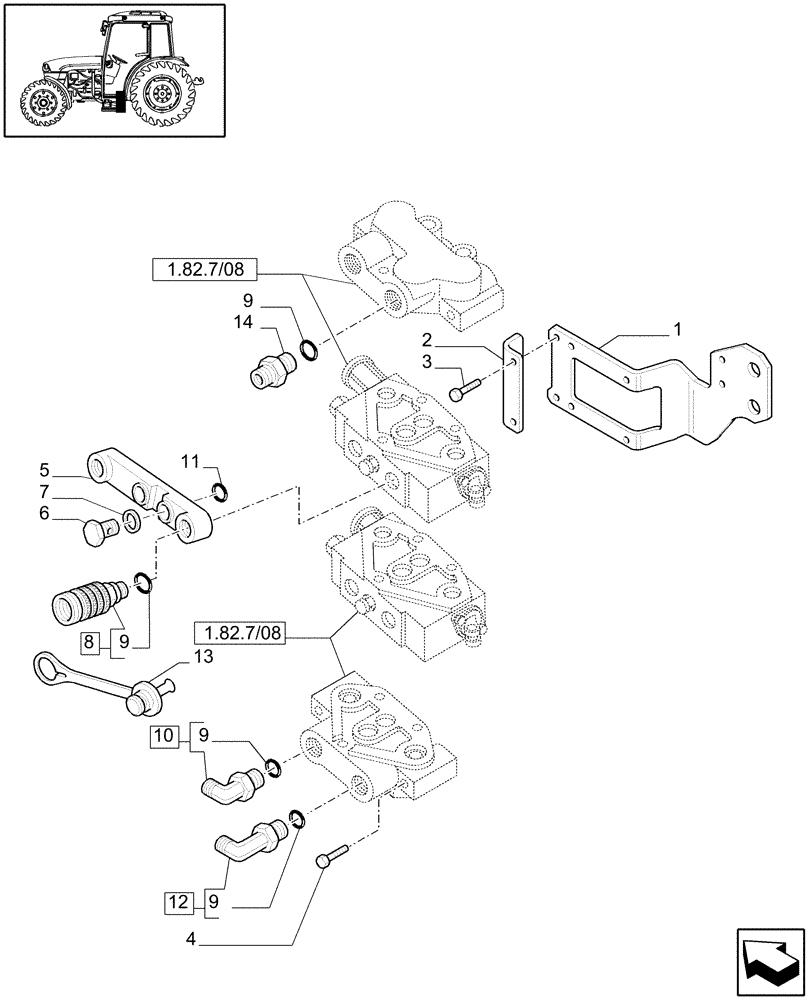

Запчасти Case IH JX1085C (1.82.7/18) - (VAR.591-592) FAST CONNECTORS FOR MID-MOUNT REMOTE VALVES - QUICK COUPLING (07) - HYDRAULIC SYSTEM

1

47127200

BRACKET

1шт.

2

47126456

BRACKET

1шт.

3

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

4шт.

5

5185533

HYD CONNECTOR

Valid for VAR.591 Only

2шт.

6

5168481

BANJO BOLT,M18 x 1.5 x 38mm

Valid for VAR.591 Only

4шт.

6

10300840

PLUG

M18x1.5, Valid for VAR.592 Only

2шт.

7

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24x1.5, Valid for VAR.592 Only

4шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

Valid for VAR.591 Only

4шт.

8

5179557

COUPLING, QUICK, FEM

Valid for VAR.591 Only, include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.

8

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

Valid for VAR.592 Only, include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

10

5148919

ELBOW

M22x1.5

1шт.

11

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

Valid for VAR.591 Only

4шт.

12

47128049

HYD CONNECTOR

1шт.

13

5186723

DUST CAP,24mm, Black

Black

2шт.

13

47133328

PLUG,24mm, Grey

Gray, Valid for VAR.591 Only

2шт.

14

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1.5

1шт.
