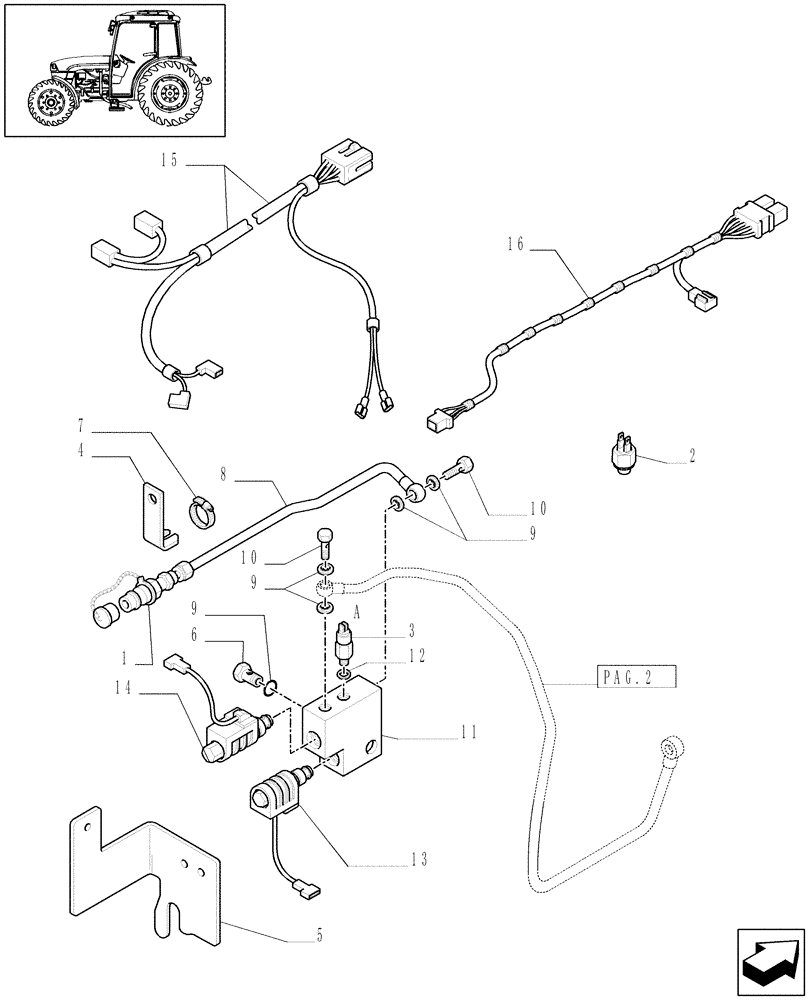

Запчасти Case IH JX1085C (1.82.716[03]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL - SOLENOID VALVES (07) - HYDRAULIC SYSTEM

1

44015354

QUICK MALE COUPLING

1шт.

2

82030730

SWITCH ASSY

Oil, Transmission, Serial Range: -C5703

1шт.

2

5157750

PRESSURE SWITCH

, Start Serial: D5703

1шт.

3

5161047

PRESSURE SWITCH

Oil, Hydr. Steering

1шт.

4

5174628

BRACKET

1шт.

5

47128721

SUPPORT

1шт.

6

5174642

BANJO BOLT,M18 x 1.5 x 57.5mm

1шт.

7

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.

8

5174640

RIGID TUBE,12mm OD

1шт.

9

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

5шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18x34

2шт.

11

5176996

BLOCK

1шт.

12

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

2шт.

13

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Trailer Brake

1шт.

14

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

Trailer Brake

1шт.

15

87303543

ELECTRIC CABLE

Trailer Brake Transmission

1шт.

16

47136955

ELECTRIC CABLE

Trailer Brake Dashboard

1шт.
