(1.82.716[02]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL - PIPES

Запчасти Case IH JX1085C (1.82.716[02]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL - PIPES (07) - HYDRAULIC SYSTEM

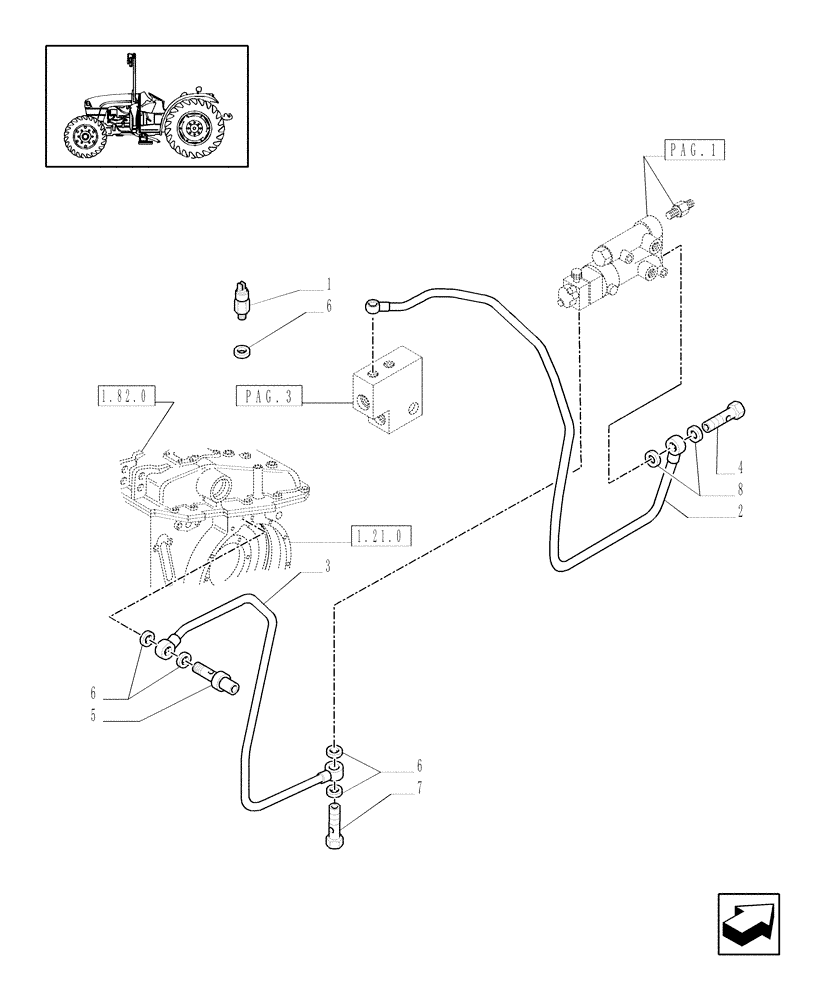

Схема запчастей Case IH JX1085C - (1.82.716[02]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL - PIPES (07) - HYDRAULIC SYSTEM
pag.3
1
4
1.21.0
2
8
6
6
7
6
pag.1
3
1.82.0
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5161047

PRESSURE SWITCH

Oil, Hydr. Steering

1шт.

2

5181311

RIGID TUBE

1шт.

3

5180650

RIGID TUBE

1шт.

4

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

5

5113983

BANJO BOLT,Hex, M12 x 1,25 x 44mm L

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

4шт.

7

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

8

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.
