(1.82.716[01]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL

Запчасти Case IH JX1085C (1.82.716[01]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL (07) - HYDRAULIC SYSTEM

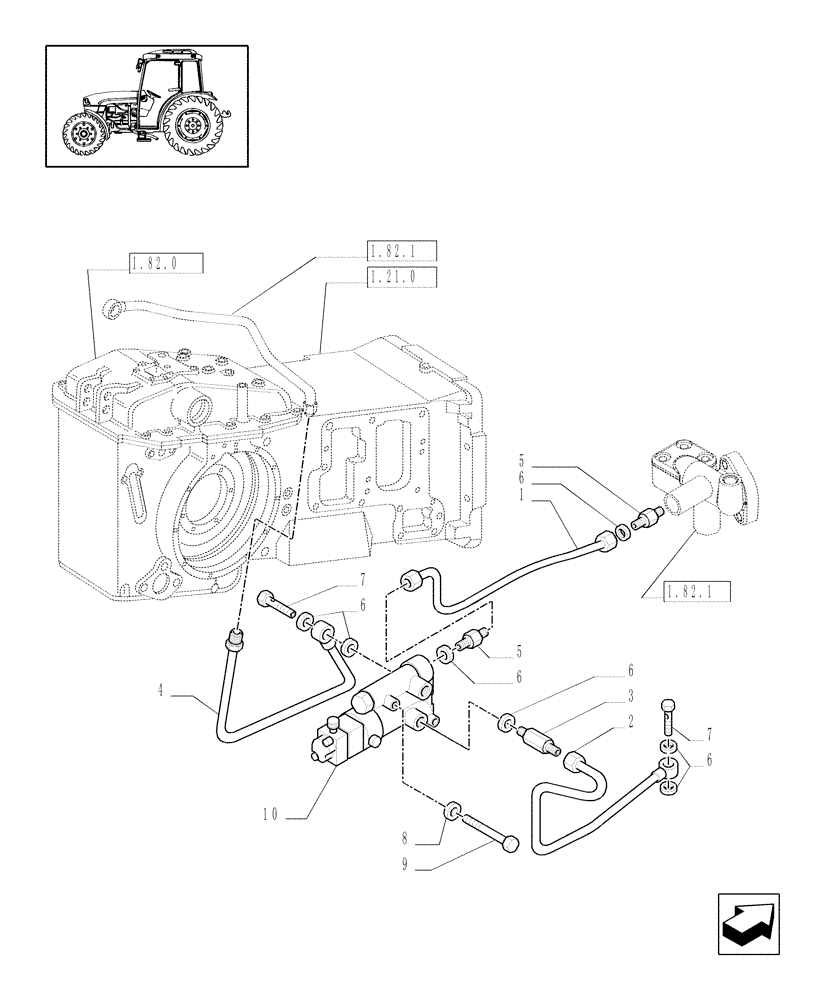

Схема запчастей Case IH JX1085C - (1.82.716[01]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL (07) - HYDRAULIC SYSTEM
2
7
10
1.82.1
5
3
6
6
6
1.82.0
9
7
1.82.1
6
1
8
5
1.21.0
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87309269

RIGID TUBE

M22

1шт.

2

5180615

RIGID TUBE

1шт.

3

5157483

VALVE, PRESSURE CONT

1шт.

4

5180483

RIGID TUBE

1шт.

5

5155665

HYD CONNECTOR

2шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

6шт.

7

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

8

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

9

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

10

47132616

HYDRAULIC VALVE

ASSY

1шт.
