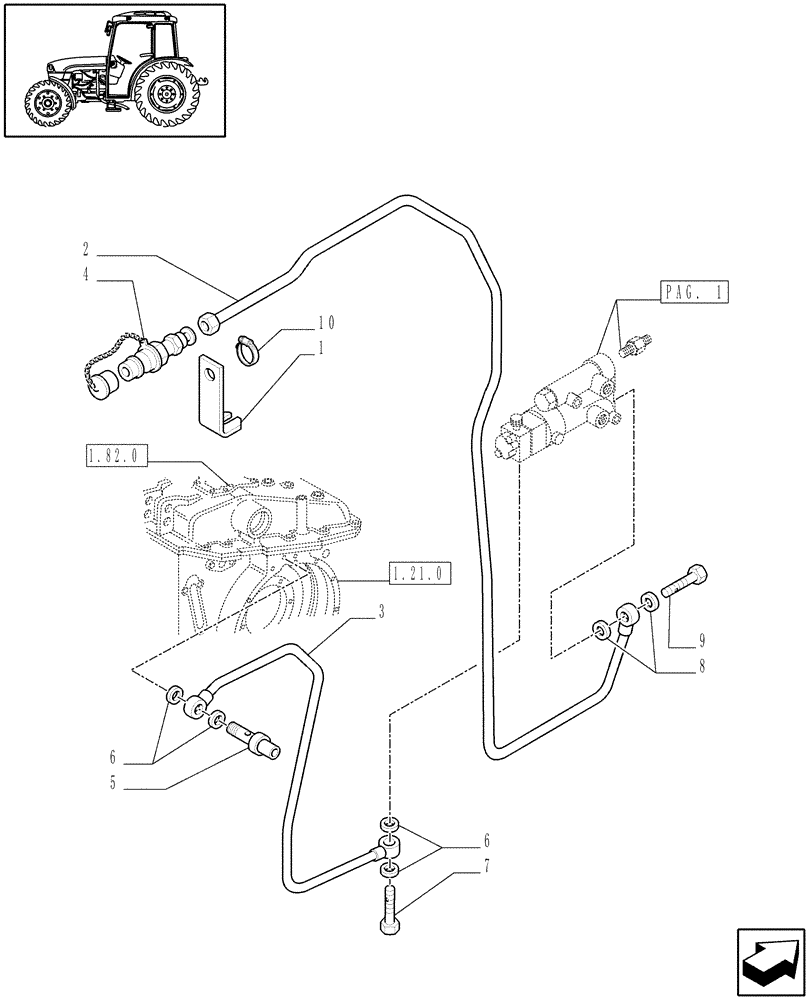

Запчасти Case IH JX1085C (1.82.715[02]) - (VAR.373) TRAILER BRAKE VALVE (FRANCE) FOR FRONT HPL W/ELECTRIC CONTROL - PIPES (07) - HYDRAULIC SYSTEM

1

5174628

BRACKET

1шт.

2

5181157

RIGID TUBE

1шт.

3

5180650

RIGID TUBE

1шт.

4

44015354

QUICK MALE COUPLING

1шт.

5

5113983

BANJO BOLT,Hex, M12 x 1,25 x 44mm L

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

4шт.

7

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

8

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

9

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

10

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.
