(1.82.7/12[02]) - (VAR.166) 4 REAR REMOTE VALVES FOR EDC - RINGS - C5484

Запчасти Case IH JX1085C (1.82.7/12[02]) - (VAR.166) 4 REAR REMOTE VALVES FOR EDC - RINGS - C5484 (07) - HYDRAULIC SYSTEM

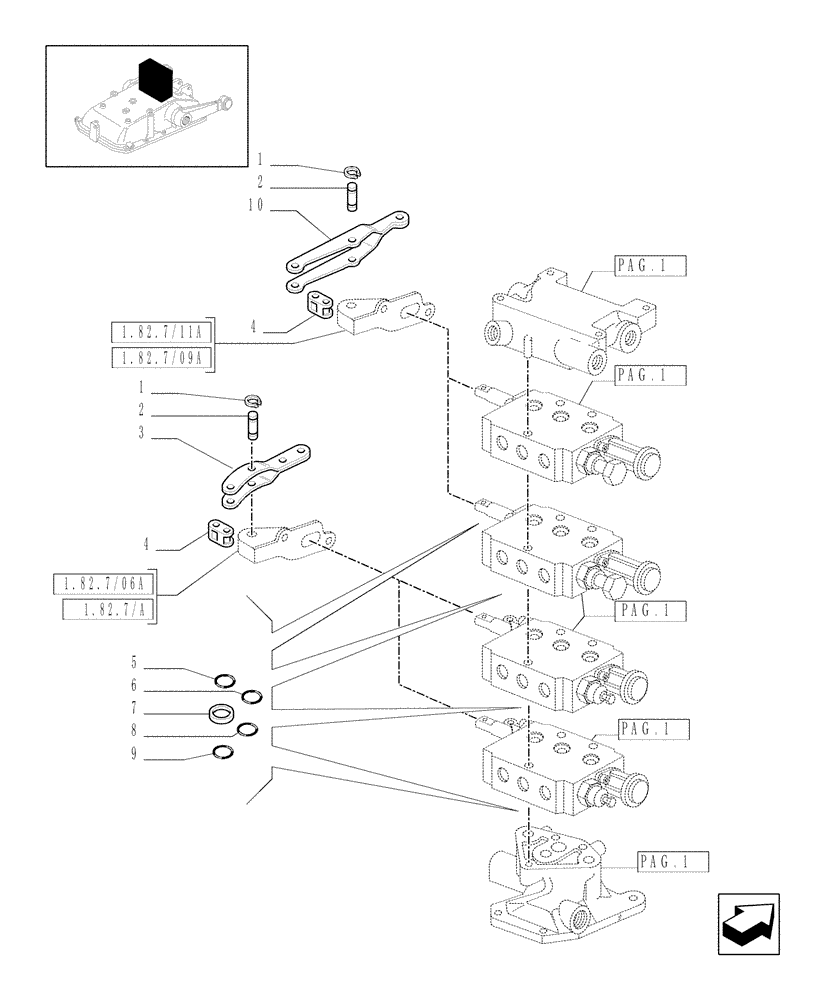

Схема запчастей Case IH JX1085C - (1.82.7/12[02]) - (VAR.166) 4 REAR REMOTE VALVES FOR EDC - RINGS - C5484 (07) - HYDRAULIC SYSTEM
4
10
g
3
1
8
1
1
.
a
1
a
a
5
a
p
p
.
a
1
1
1.82.7/a
2
g
6
1.82.7/06a
1.82.7/09a
4
9
1
.
2
p
g
7
g
.
1.82.7/11a
g
.
p
p
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11087776

CIRCLIP,Ext., M6, BLO

4шт.

2

5172456

PIN,6mm OD x 20mm L

4шт.

3

5178877

CLEVIS

2шт.

4

5116896

LINK,19.05mm Pitch

4шт.

5

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72

15шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2

5шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

5шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

5шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

15шт.

10

5178183

CLEVIS

2шт.
