(1.82.7/12[01]) - (VAR.166) 4 REAR REMOTE VALVES FOR EDC - CONTROL VALVES - C5484

Запчасти Case IH JX1085C (1.82.7/12[01]) - (VAR.166) 4 REAR REMOTE VALVES FOR EDC - CONTROL VALVES - C5484 (07) - HYDRAULIC SYSTEM

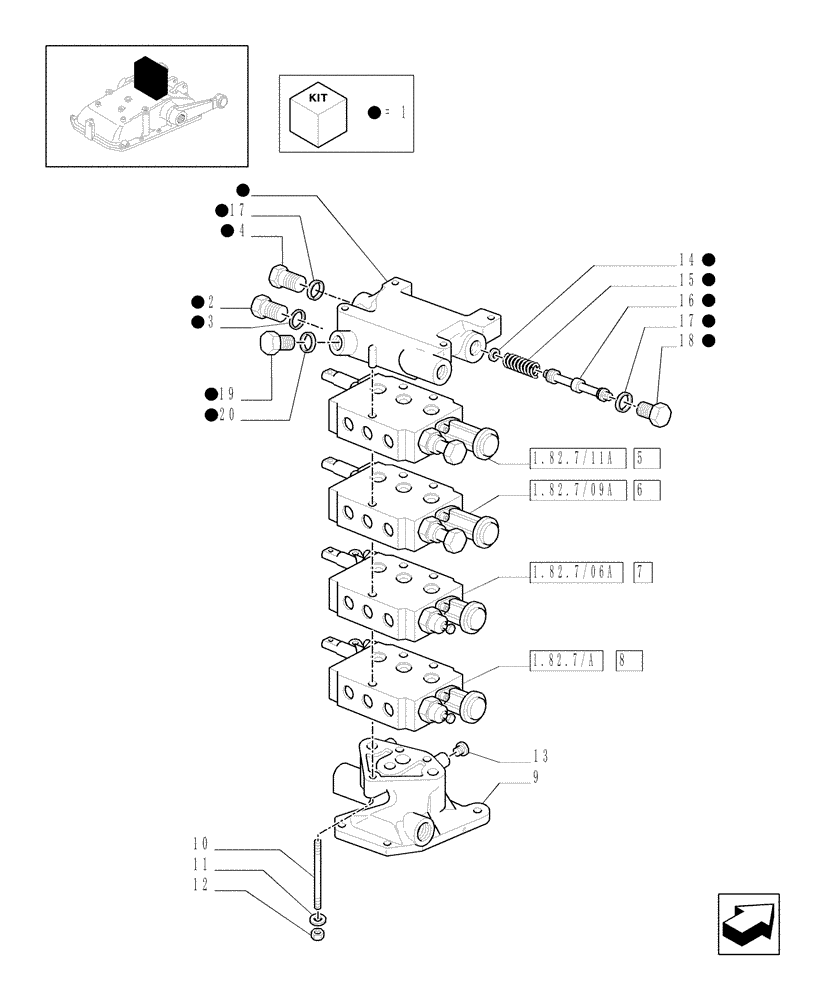

Схема запчастей Case IH JX1085C - (1.82.7/12[01]) - (VAR.166) 4 REAR REMOTE VALVES FOR EDC - CONTROL VALVES - C5484 (07) - HYDRAULIC SYSTEM
1.82.7/09a
1
20
1
15
1
18
10
19
1
1.82.7/06a
1
5
1
13
8
1
17
17
6
1
1
16
9
1.82.7/a
1.82.7/11a
1
11
3
2
4
7
1
1
12
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5173961

FLANGE

ASSY

1шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

1шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5171282

CONTROL VALVE

ASSY., S/D

1шт.

6

5171283

CONTROL VALVE

ASSY., S/D w/Float

1шт.

7

5186854

CONTROL VALVE

ASSY., S/D w/Kickout & Float

1шт.

8

5186278

CONTROL VALVE

ASSY., S/D w/Kickout

1шт.

9

5176480

FLANGE

1шт.

10

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

11

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

12

5116857

NUT,3/8" - 24

6шт.

13

10269601

PLUG,M16 x 1.5

M16x1.5

1шт.

14

5167122

VALVE

1шт.

15

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

16

83999793

HYDRAULIC VALVE

1шт.

17

14438185

O-RING,24mm ID x 3mm

2шт.

18

5167123

PLUG,7/16" - 20

1шт.

19

83957506

PLUG,3/4"

1шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.
