(1.82.7/11[01]) - (VAR.165) 4 REAR REMOTE VALVES FOR MDC - CONTROL VALVES - C5484

Запчасти Case IH JX1085C (1.82.7/11[01]) - (VAR.165) 4 REAR REMOTE VALVES FOR MDC - CONTROL VALVES - C5484 (07) - HYDRAULIC SYSTEM

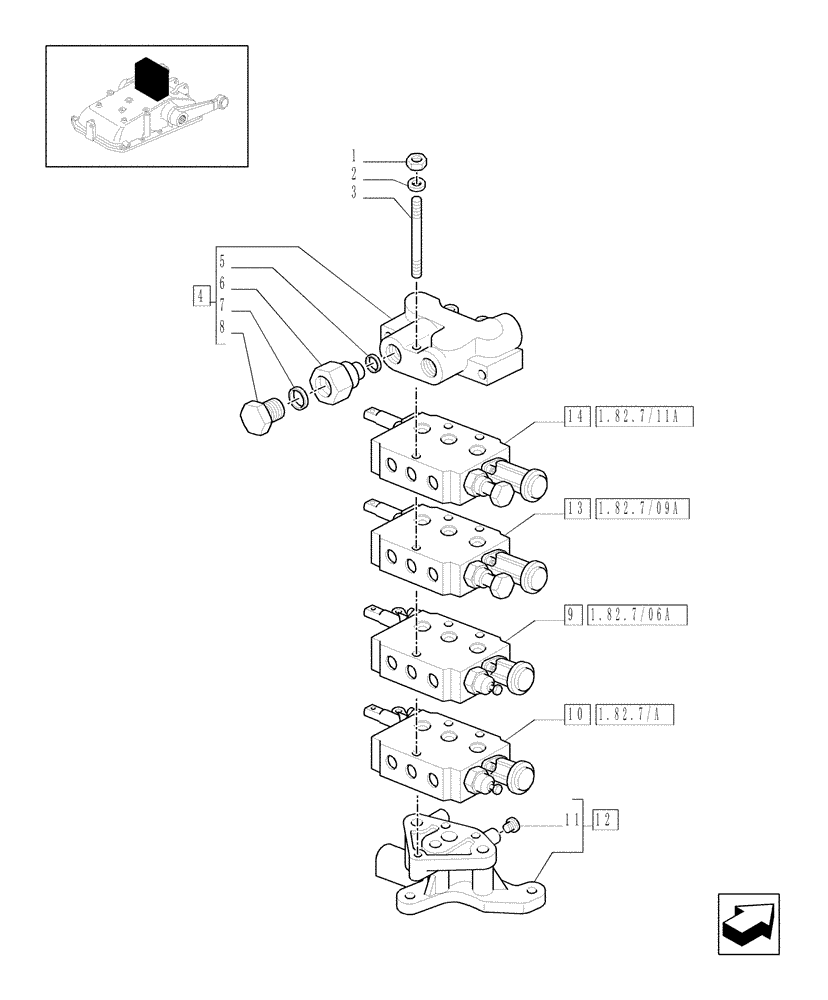

Схема запчастей Case IH JX1085C - (1.82.7/11[01]) - (VAR.165) 4 REAR REMOTE VALVES FOR MDC - CONTROL VALVES - C5484 (07) - HYDRAULIC SYSTEM
6
14
8
11
1
1.82.7/a
7
1.82.7/09a
4
1.82.7/11a
1.82.7/06a
2
9
12
3
13
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5116857

NUT,3/8" - 24

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

3

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

4

5173758

SUPPORT

ASSY

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

8

83957506

PLUG,3/4"

1шт.

9

5186854

CONTROL VALVE

ASSY., S/D

1шт.

10

5186278

CONTROL VALVE

ASSY., S/D w/Float

1шт.

11

10269650

PLUG

M16x1.5

1шт.

12

5176800

FLANGE

1шт.

13

5171283

CONTROL VALVE

ASSY., S/D w/Kickout

1шт.

14

5171282

CONTROL VALVE

ASSY., S/D w/Kickout & Float

1шт.
