(1.82.7/10[01]) - (VAR.164) 3 REAR REMOTE VALVES FOR EDC - CONTROL VALVES - C5484

Запчасти Case IH JX1085C (1.82.7/10[01]) - (VAR.164) 3 REAR REMOTE VALVES FOR EDC - CONTROL VALVES - C5484 (07) - HYDRAULIC SYSTEM

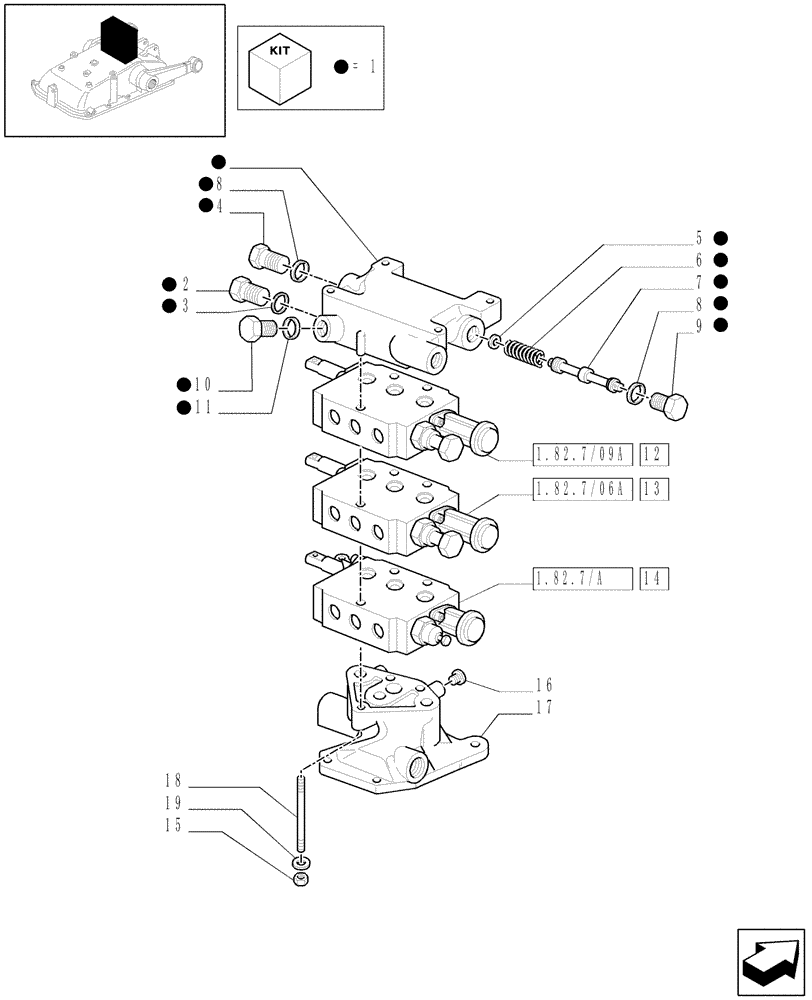

Схема запчастей Case IH JX1085C - (1.82.7/10[01]) - (VAR.164) 3 REAR REMOTE VALVES FOR EDC - CONTROL VALVES - C5484 (07) - HYDRAULIC SYSTEM
1
1
1.82.7/06a
6
13
1
1
2
11
1
1
1
10
4
8
1
8
16
5
14
15
1.82.7/a
1.82.7/09a
17
9
1
1
18
1
3
12
19
1
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5173961

FLANGE

ASSY

1шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

1шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

2шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

12

5171283

CONTROL VALVE

ASSY., S/D w/Float

1шт.

13

5186854

CONTROL VALVE

ASSY., S/D w/Kickout & Float

1шт.

14

5186278

CONTROL VALVE

ASSY., S/D w/Kickout

1шт.

15

5116857

NUT,3/8" - 24

6шт.

16

10269601

PLUG,M16 x 1.5

M16x1.5

1шт.

17

5176480

FLANGE

1шт.

18

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

19

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

M10

3шт.
