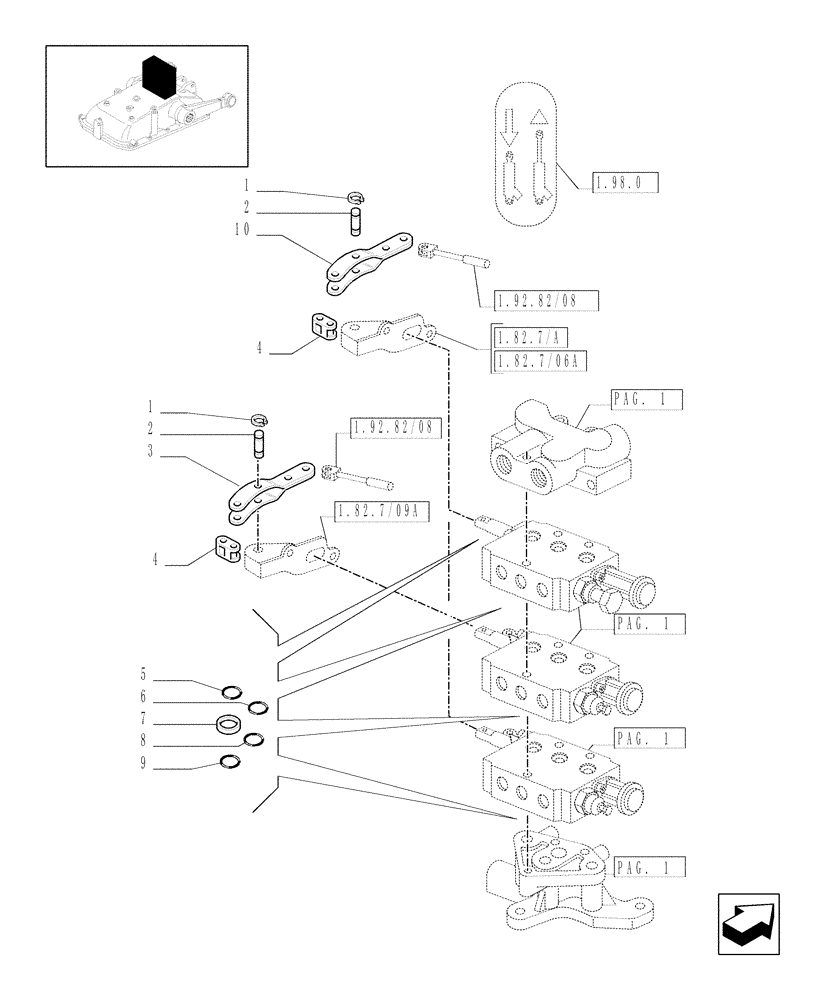

Запчасти Case IH JX1085C (1.82.7/09[02]) - (VAR.195) 3 REAR REMOTE VALVES FOR MDC - RINGS - C5484 (07) - HYDRAULIC SYSTEM

1

11087776

CIRCLIP,Ext., M6, BLO

3шт.

2

5172456

PIN,6mm OD x 20mm L

3шт.

3

5178877

CLEVIS

2шт.

4

5116896

LINK,19.05mm Pitch

3шт.

5

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72

12шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2

4шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

4шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

4шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

12шт.

10

5178183

CLEVIS

1шт.
