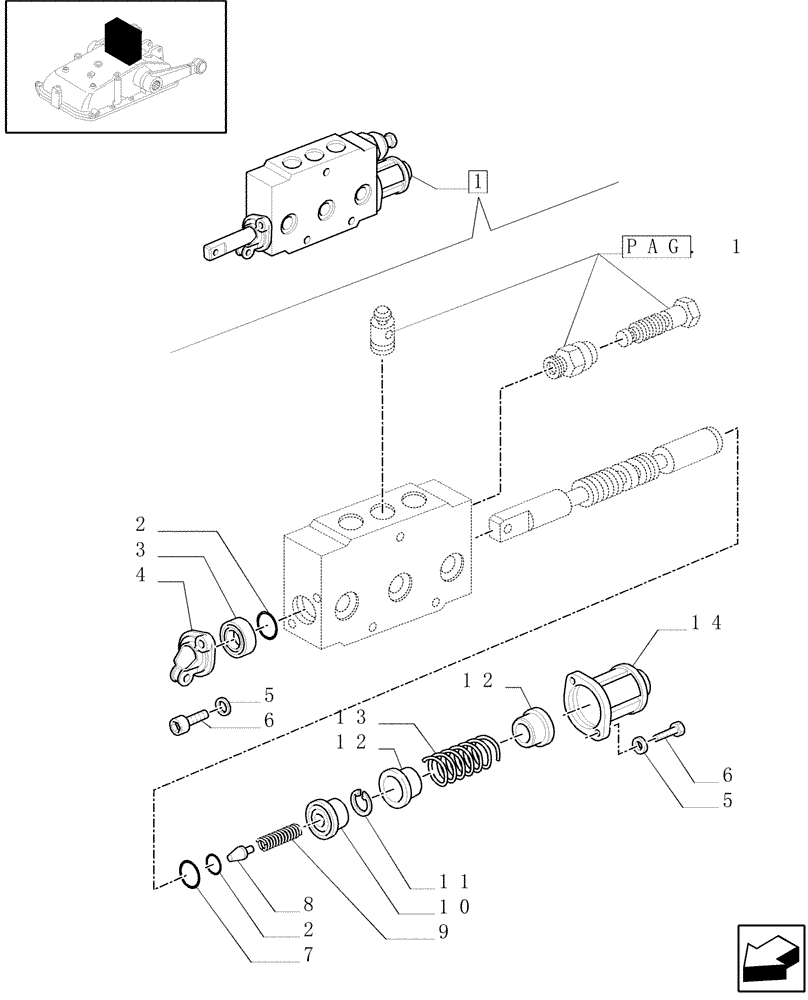

Запчасти Case IH JX1085C (1.82.7/08B[02]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR WITH FLOAT - PARTS - C5484 (07) - HYDRAULIC SYSTEM

1

5180686

CONTROL VALVE

ASSY

1шт.

2

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

3

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

4

5116887

SUPPORT

1шт.

5

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

6

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

4шт.

7

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

8

5179065

PIN,3mm OD x 24mm L

1шт.

9

5118362

SPRING,6.6mm OD x 33mm L

1шт.

10

5179068

BUSHING,16.3mm ID x 27.2mm OD x 16mm L

1шт.

11

5140823

SNAP RING,12.9mm ID x 17.1mm OD x 1mm Thk

D=14

1шт.

12

5118361

RETAINER,Spring

2шт.

13

5188565

SPRING,28mm OD x 46mm L

1шт.

14

5118364

COVER

1шт.
