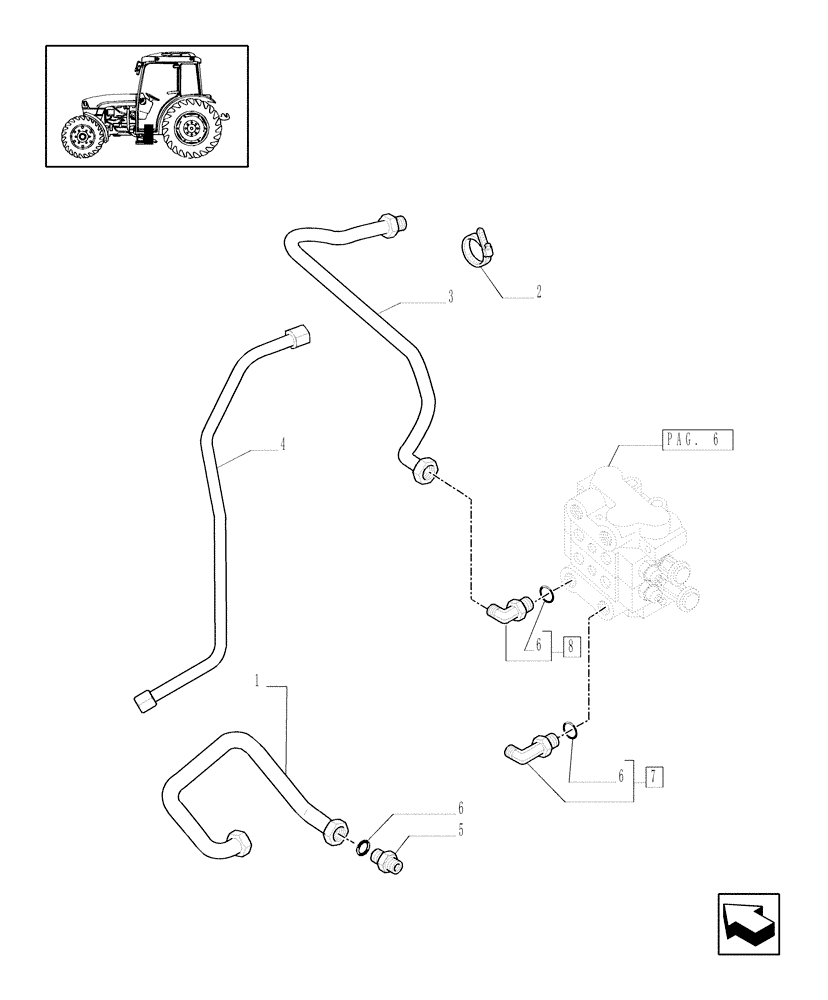

Запчасти Case IH JX1085C (1.82.7/08[08]) - (VAR.124) 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK - PIPES - D5484 (07) - HYDRAULIC SYSTEM

1

87312681

RIGID TUBE

1шт.

2

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

1шт.

3

47126969

RIGID TUBE

1шт.

4

47130285

RIGID TUBE

1шт.

5

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1,5

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

7

47128049

HYD CONNECTOR

1шт.

8

5148919

ELBOW

M22x1.5

1шт.
