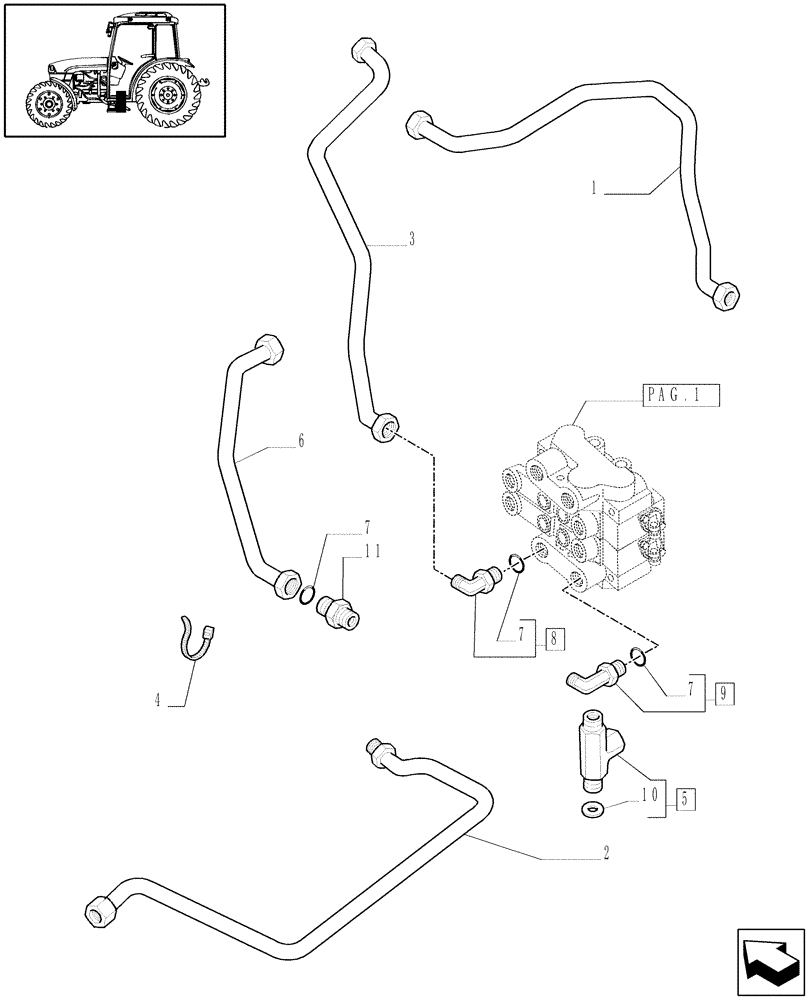

Запчасти Case IH JX1085C (1.82.7/08[05]) - (VAR.157-159) 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK FOR FRONT LIFT - PIPES - C5484 (07) - HYDRAULIC SYSTEM

1

87310459

HYD TUBE,18 mm OD

1шт.

2

47126969

RIGID TUBE

1шт.

3

47130285

RIGID TUBE

1шт.

4

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

1шт.

5

5155596

3 WAY CONNECTION

M18x1.5

1шт.

6

47130292

RIGID TUBE

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

8

5148919

ELBOW

M22x1.5 , 1-1/16"-12

1шт.

9

47128049

HYD CONNECTOR

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1.5

1шт.
