(1.82.7/08[04]) - (VAR.125) 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK FOR TRAILER BRAKE VALVE - PIPES - C5484

Запчасти Case IH JX1085C (1.82.7/08[04]) - (VAR.125) 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK FOR TRAILER BRAKE VALVE - PIPES - C5484 (07) - HYDRAULIC SYSTEM

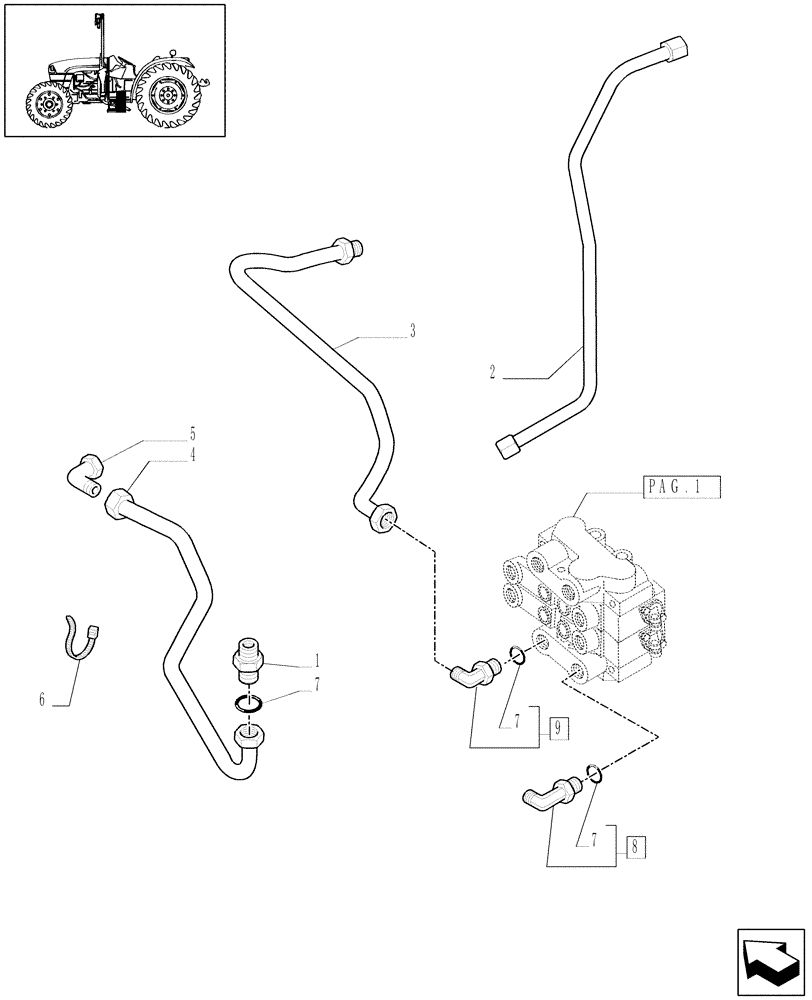

Схема запчастей Case IH JX1085C - (1.82.7/08[04]) - (VAR.125) 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK FOR TRAILER BRAKE VALVE - PIPES - C5484 (07) - HYDRAULIC SYSTEM
g
2
3
7
a
1
7
6
p
7
1
5
.
4
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1.5

1шт.

2

47130285

RIGID TUBE

1шт.

3

47126969

RIGID TUBE

1шт.

4

87312679

RIGID TUBE

1шт.

5

47128974

HYD CONNECTOR

1шт.

6

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

1шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

8

47128049

HYD CONNECTOR

1шт.

9

5148919

ELBOW

M22x1.5, 1-1/16* - 12

1шт.

Выбрано товаров: 0
