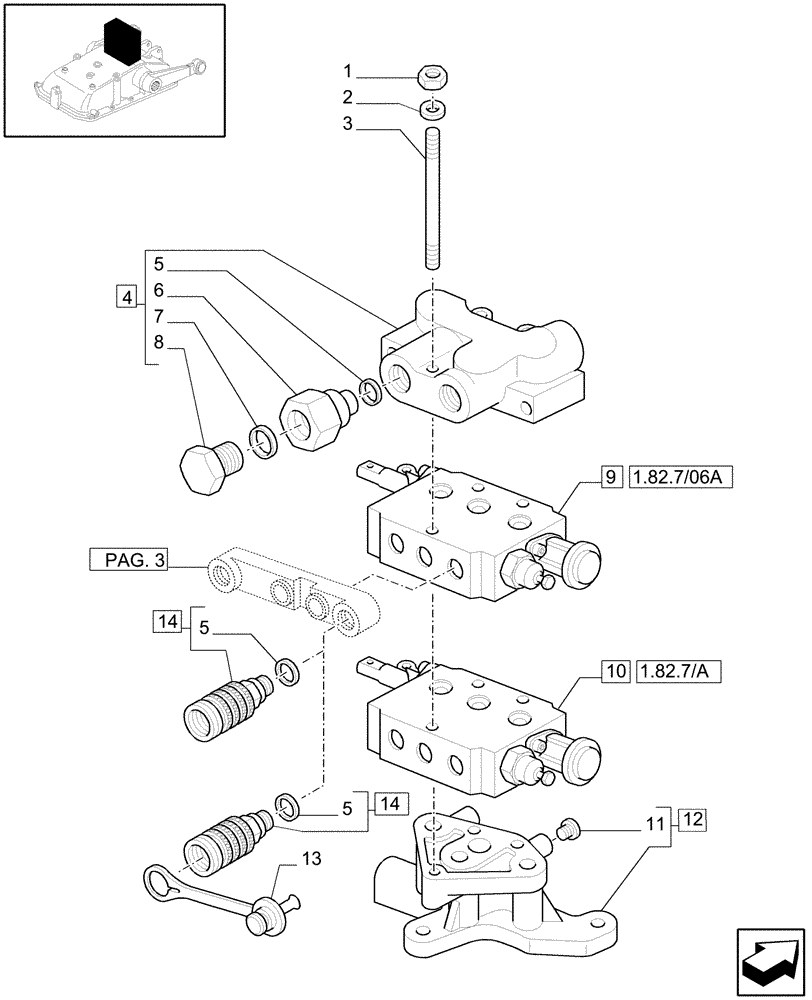

Запчасти Case IH JX1085C (1.82.7/06[01]) - (VAR.108) 2 REAR REMOTE VALVES FOR MDC - REMOTE VALVES - C5484 (07) - HYDRAULIC SYSTEM

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

3

5151506

THREADED ROD,3/8" - 24 x 6-5/8"

3шт.

4

5173758

SUPPORT

ASSY

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

5шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro

1шт.

8

83957506

PLUG,3/4"

1шт.

9

5186854

CONTROL VALVE

ASSY., S/D w/Kickout & Float

1шт.

10

5186278

CONTROL VALVE

ASSY., S/D w/Kickout

1шт.

11

10269601

PLUG,M16 x 1.5

M16x1.5

1шт.

12

5176800

FLANGE

1шт.

13

5186723

DUST CAP,24mm, Black

Black

4шт.

14

5179557

COUPLING, QUICK, FEM

include p/n 1534623C1

4шт.

1534623C1

SEAL KIT

1шт.
