(1.82.7/05[06]) - (VAR.028) 2 REAR REMOTE VALVES FOR MID-MOUNT AND EDC - PIPES - D5484

Запчасти Case IH JX1085C (1.82.7/05[06]) - (VAR.028) 2 REAR REMOTE VALVES FOR MID-MOUNT AND EDC - PIPES - D5484 (07) - HYDRAULIC SYSTEM

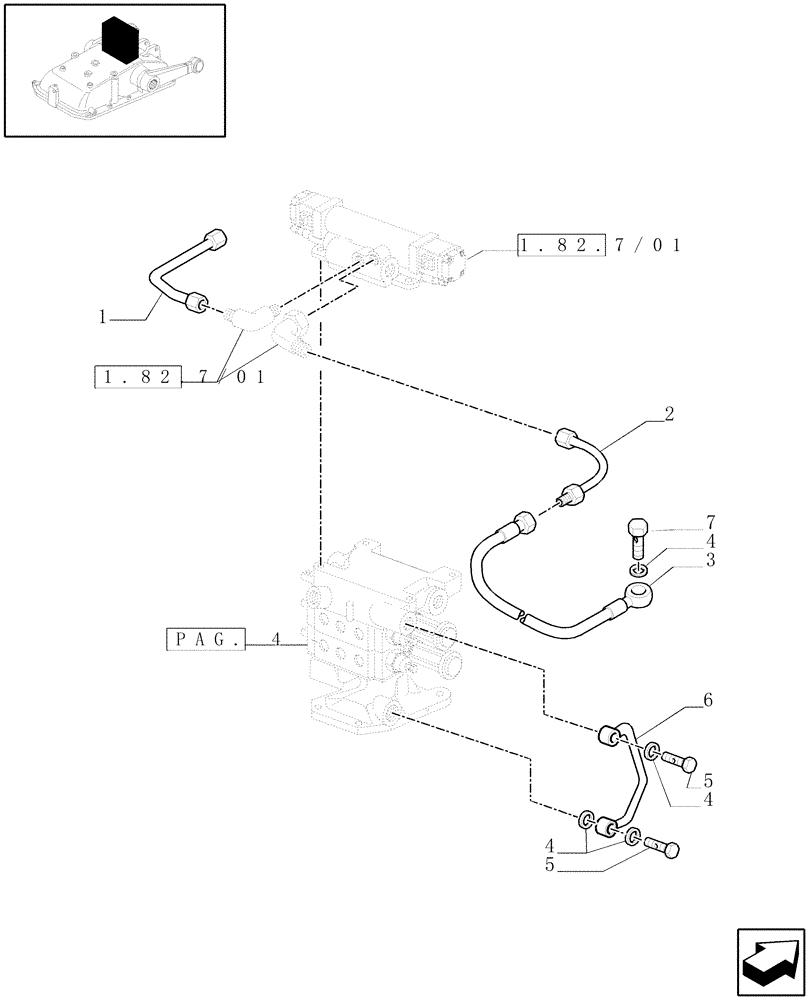

Схема запчастей Case IH JX1085C - (1.82.7/05[06]) - (VAR.028) 2 REAR REMOTE VALVES FOR MID-MOUNT AND EDC - PIPES - D5484 (07) - HYDRAULIC SYSTEM
3
5
4
1
1.82.7/01
2
4
4
7
pag. 4
1.82.7/01
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174040

RIGID TUBE

1шт.

2

47131635

RIGID TUBE

1шт.

3

47133401

FLEXIBLE HOSE,6mm ID x 1110mm L

1110 MM

1шт.

Front Pilot Hose

1шт.

4

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

4шт.

5

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

6

5174038

RIGID TUBE

1шт.

7

84196125

BANJO BOLT,Hex, M12 x 1.5

1шт.
