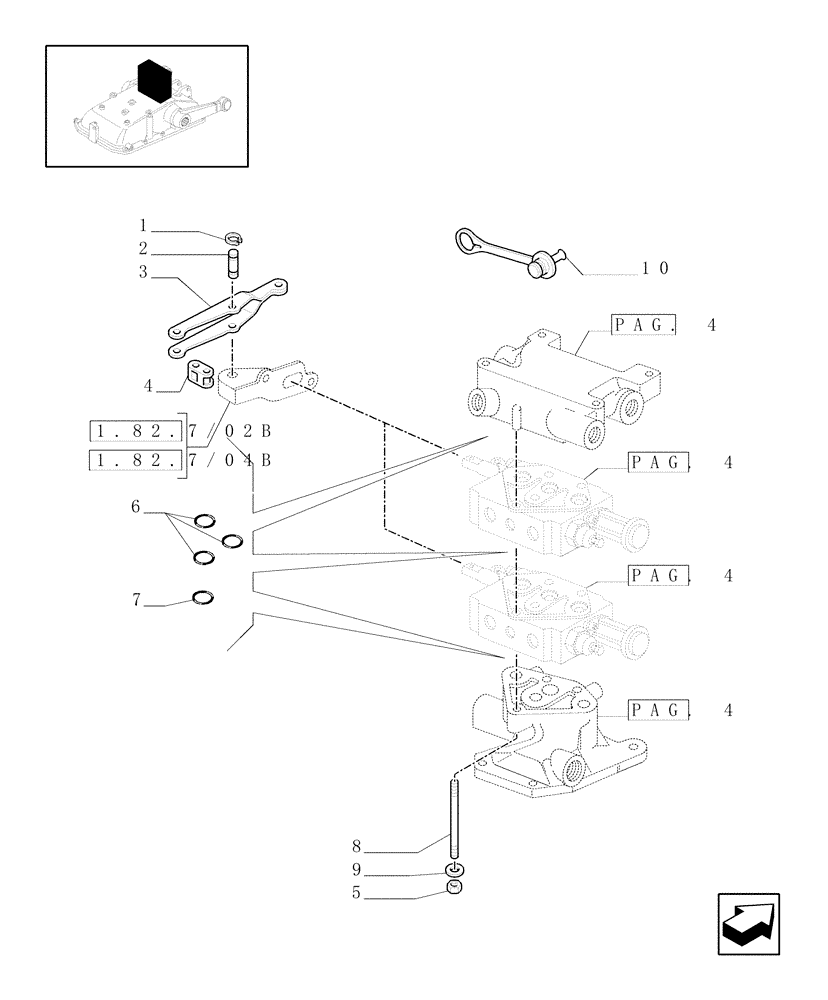

Запчасти Case IH JX1085C (1.82.7/05[05]) - (VAR.028) 2 REAR REMOTE VALVES FOR MID-MOUNT AND EDC - REMOTE VALVES - D5484 (07) - HYDRAULIC SYSTEM

1

11087776

CIRCLIP,Ext., M6, BLO

2шт.

2

5172456

PIN,6mm OD x 20mm L

2шт.

3

5178183

CLEVIS

2шт.

4

5116896

LINK,19.05mm Pitch

2шт.

5

5116857

NUT,3/8" - 24

3/8"

6шт.

6

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

9шт.

7

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING D=19.2

3шт.

8

5150104

STUD,3/8" - 24 x 5"

3шт.

9

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

10

5186723

DUST CAP,24mm, Black

Black

4шт.
