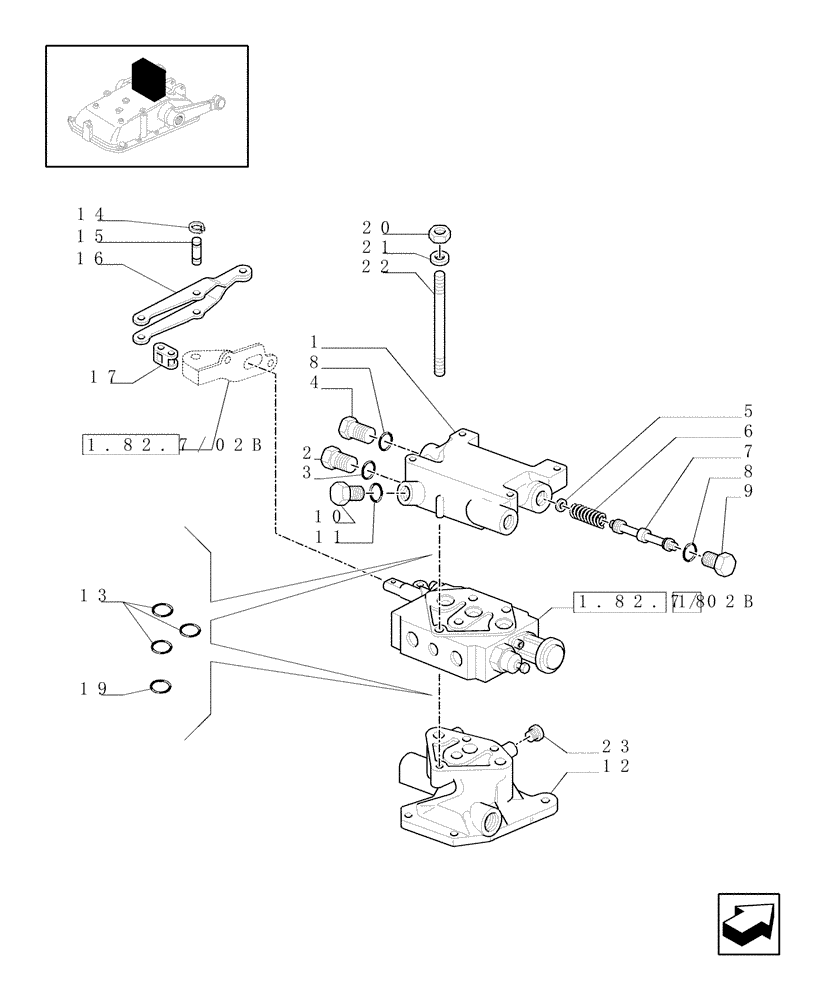

Запчасти Case IH JX1085C (1.82.7/03[02]) - (VAR.026) 1 REAR REMOTE VALVE FOR MID-MOUNT AND EDC - REMOTE VALVES - D5484 (07) - HYDRAULIC SYSTEM

1

87374218

FLANGE

INCL.2-11

1шт.

2

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18x1.5

1шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

2шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro

1шт.

12

5176480

FLANGE

1шт.

13

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

6шт.

14

11087776

CIRCLIP,Ext., M6, BLO

1шт.

15

5172456

PIN,6mm OD x 20mm L

1шт.

16

5178183

CLEVIS

1шт.

17

5116896

LINK,19.05mm Pitch

1шт.

18

47129231

CONTROL VALVE

ASSY., S/D w/Kickout for Mid-Mount Remotes Only

1шт.

19

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING D=24

2шт.

20

5116857

NUT,3/8" - 24

3/8"

6шт.

21

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

22

47129213

TIE-ROD

3шт.

23

10269601

PLUG,M16 x 1.5

M16x1.5

1шт.
