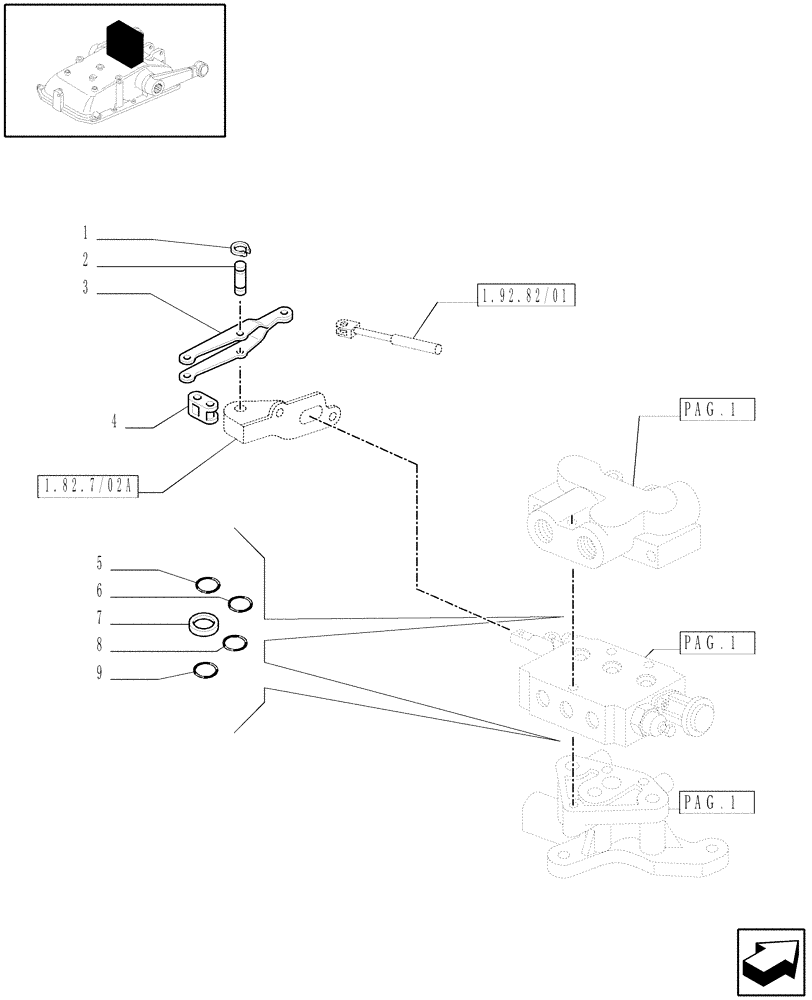

Запчасти Case IH JX1085C (1.82.7/02[02]) - (VAR.025) 1 REAR REMOTE VALVE FOR MID-MOUNT AND MDC - RINGS - C5484 (07) - HYDRAULIC SYSTEM

1

11087776

CIRCLIP,Ext., M6, BLO

1шт.

2

5172456

PIN,6mm OD x 20mm L

1шт.

3

5178183

CLEVIS

1шт.

4

5116896

LINK,19.05mm Pitch

1шт.

5

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

D=18.72

6шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

D=19.2

2шт.

7

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

2шт.

8

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

6шт.
