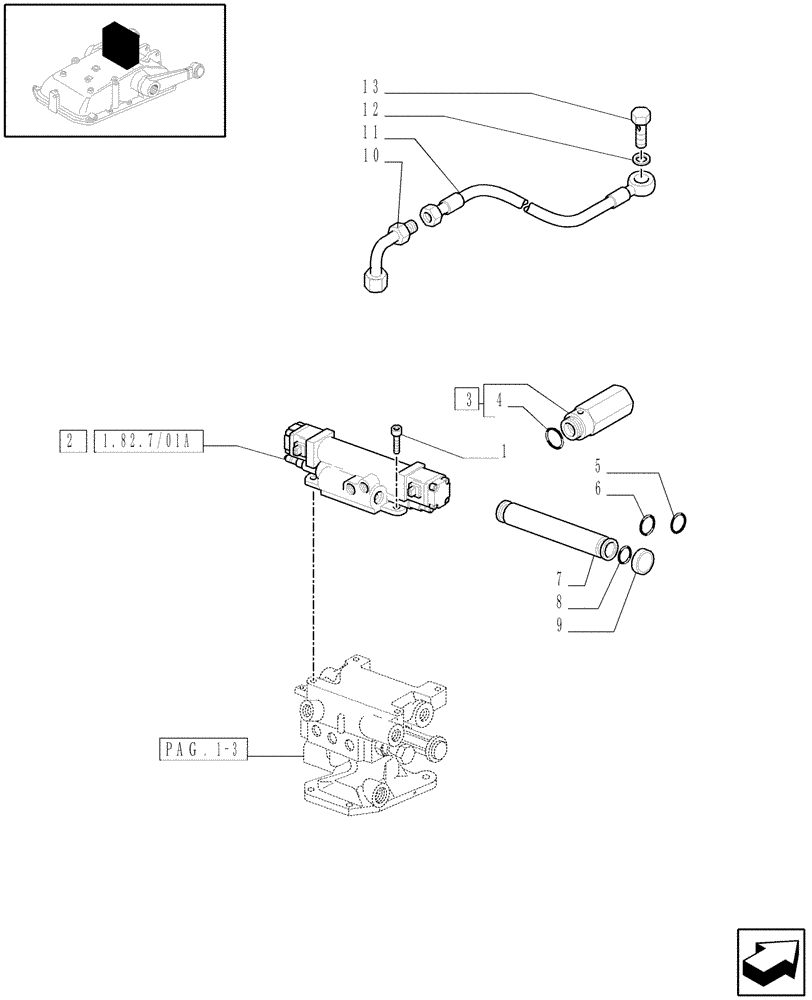

Запчасти Case IH JX1085C (1.82.7/01[04]) - (VAR.126-127) ELECTRONIC LIFT - VALVE AND PIPES (07) - HYDRAULIC SYSTEM

1

81864028

HEX SOC SCREW,7/16" - 14 x 1", Gr 8

Socket Hd, 7/16"-14 x 1"

4шт.

2

82011395

HYDRAULIC VALVE

ASSY

1шт.

3

5117739

VALVE PRESSURE RELIE,M20 x 1.5

1шт.

4

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

5

83949068

O-RING,0.103" Thk x 1.799" ID, -133, Cl 6, 90 Duro

1.812" ID x .103" Thk

1шт.

6

80272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

90 Duro, .487" ID x .103" Thk

2шт.

7

5176630

PIPE,20mm ID x 105mm L

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

9

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

2шт.

10

47131635

RIGID TUBE

1шт.

11

47133401

FLEXIBLE HOSE,6mm ID x 1110mm L

1110 MM

1шт.

Front Pilot Hose

1шт.

12

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

13

84196125

BANJO BOLT,Hex, M12 x 1.5

1шт.
