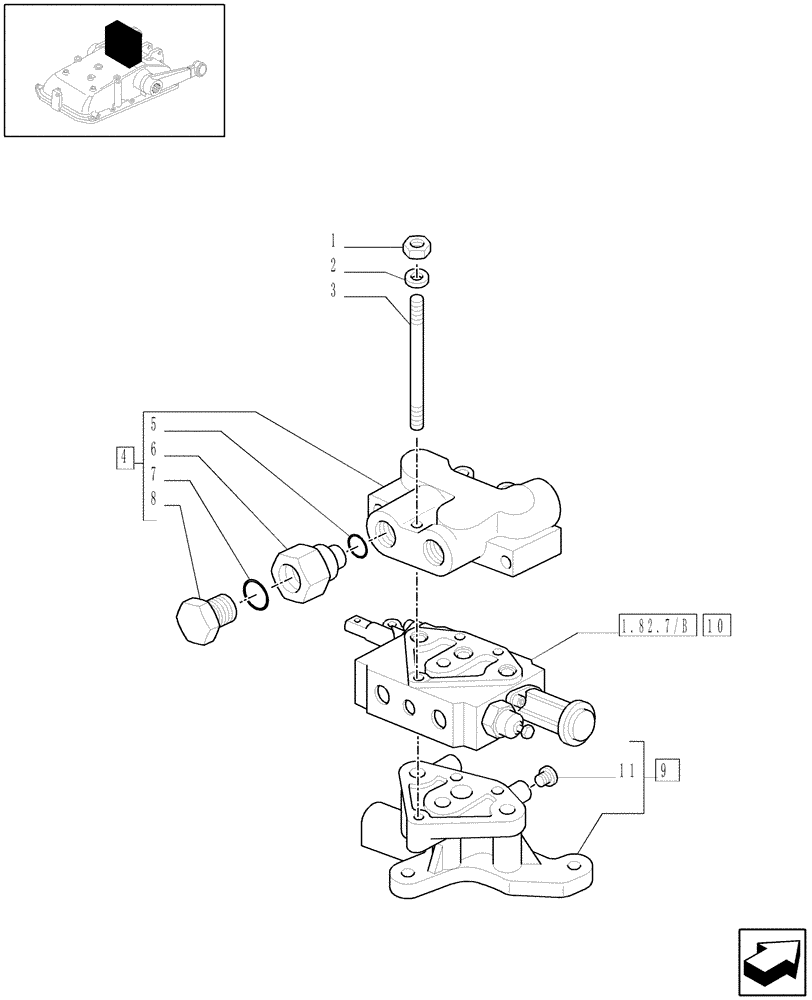

Запчасти Case IH JX1085C (1.82.7[05]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR - D5484 (07) - HYDRAULIC SYSTEM

1

5116857

NUT,3/8" - 24

3/8"

6шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

D=10

3шт.

3

5150104

STUD,3/8" - 24 x 5"

3шт.

4

87397264

SUPPORT

ASSY

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro

1шт.

8

83957506

PLUG,3/4"

1шт.

9

5176800

FLANGE

1шт.

10

87396881

CONTROL VALVE

ASSY., S/D W/Autom.Kick-Out

1шт.

11

10269601

PLUG,M16 x 1.5

M16x1.5

1шт.
