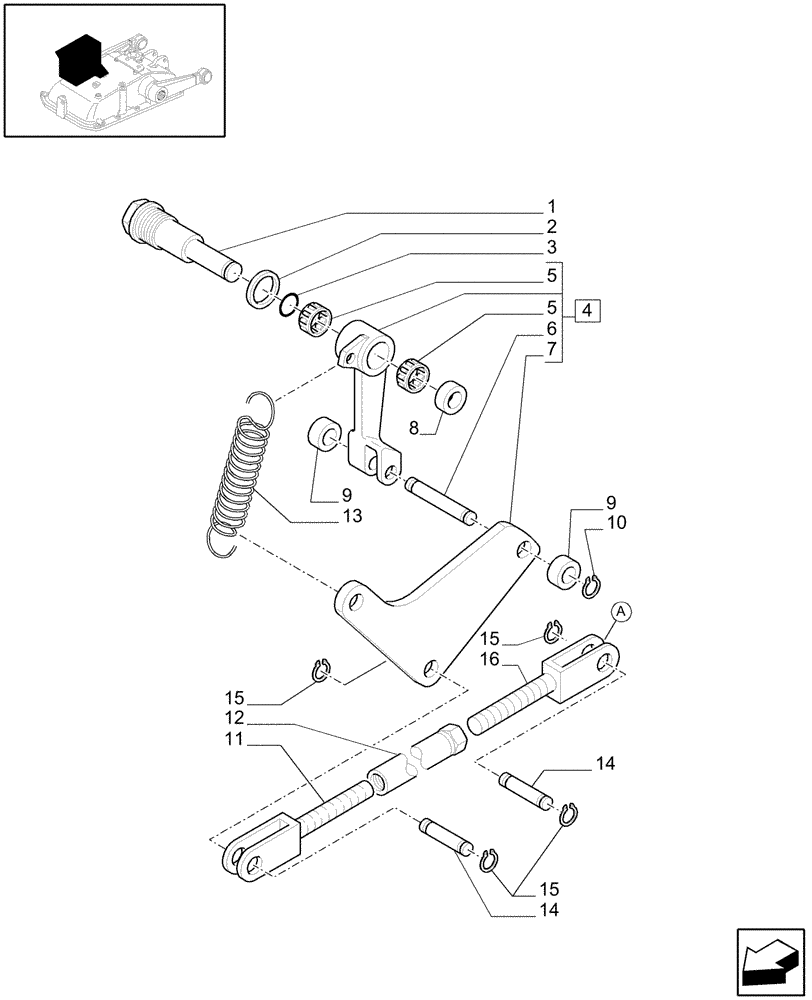

Запчасти Case IH JX1085C (1.82.5[04]) - LIFT CONTROL (07) - HYDRAULIC SYSTEM

1

5168417

PIN,14mm OD x 96mm L

1шт.

2

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

3

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

4

5173357

ARM

ASSY

1шт.

5

5109160

ROLLER BEARING,Needle, 14mm ID x 20mm OD x 12mm W

14 x 20 x 12

2шт.

6

5173361

PIN,8mm OD x 53mm L

1шт.

7

5150257

LEVER

1шт.

8

5116251

SPACER,14.1mm ID x 19mm OD x 5mm L

14.1x19x5

1шт.

9

5111028

ROLLER,18mm OD x 10mm L

2шт.

10

89990741

SNAP RING

D=8

2шт.

11

11990774

YOKE,M8 (LH) x 8mm Hole Dia x 90mm L

8x24

1шт.

12

10092511

NUT,Adjusting, M8 x 1.25 x 80mm

1шт.

13

5148884

SPRING,Extension, 28mm OD x 84mm L

1шт.

14

10249270

PIN,8mm OD x 22mm L

2шт.

15

11087976

CIRCLIP,Ext., M8, BLO

4шт.

16

10008971

CLEVIS,M8 x 8mm Hole Dia x 90mm L

M8

1шт.
