(1.82.2[02]) - (VAR.834) MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT

Запчасти Case IH JX1085C (1.82.2[02]) - (VAR.834) MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT (07) - HYDRAULIC SYSTEM

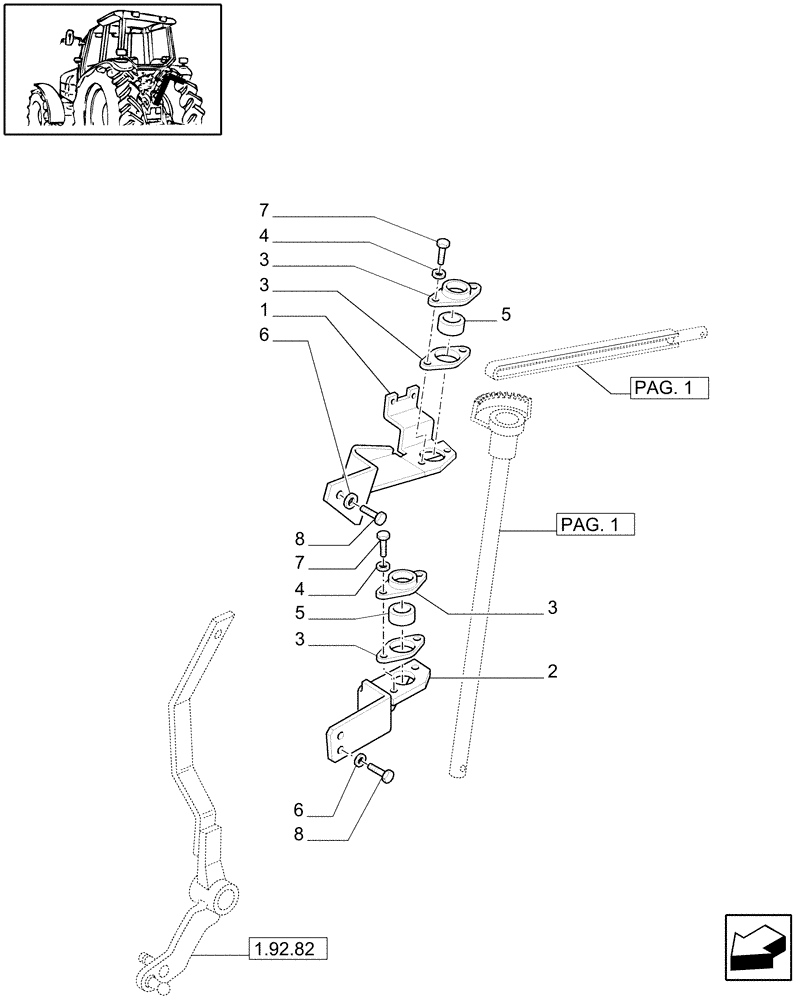

Схема запчастей Case IH JX1085C - (1.82.2[02]) - (VAR.834) MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT (07) - HYDRAULIC SYSTEM
pag. 1
3
1
6
2
7
7
3
8
5
4
4
6
8
5
3
1.92.82
pag. 1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5177514

SUPPORT

Upper, W/Cab

1шт.

1

5179584

SUPPORT

Upper, L/Cab

1шт.

2

5177517

SUPPORT

Lower, W/Cab

1шт.

2

5179583

SUPPORT

Lower, L/Cab

1шт.

3

5110722

CUP

4шт.

4

10516474

LOCK WASHER

4шт.

5

5127536

BUSHING,20.5mm ID x 32mm OD

4шт.

6

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

8

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
