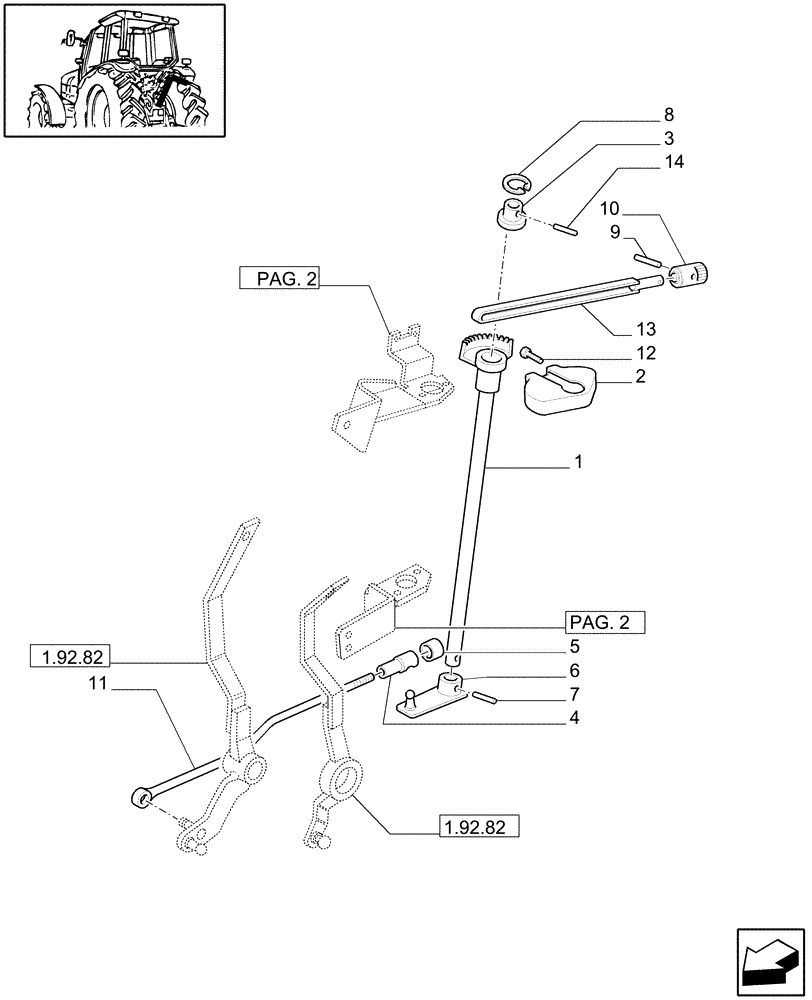

Запчасти Case IH JX1085C (1.82.2[01]) - (VAR.834) MECHANICAL LIFT GROUND CONTROL - LEVER AND SHAFT (07) - HYDRAULIC SYSTEM

1

5170979

CONTROL SHAFT

1шт.

2

5171028

COVER

1шт.

3

5171002

HUB

1шт.

4

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

1шт.

5

10125574

CLAMP,13mm

1шт.

6

5134373

LEVER

1шт.

7

13910170

ROLL PIN,M6 x 26, Coiled

1шт.

8

11059974

SNAP RING,M40, Int

1шт.

9

14164470

LOCK PIN,M4 x 32, Slotted

1шт.

10

5144119

KNOB

1шт.

11

5177691

TIE-ROD

W/Cab

1шт.

11

5179925

TIE-ROD

L/Cab

1шт.

12

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

13

5189838

LEVER

110 MM

1шт.

14

14601374

LOCK PIN,M5 x 30, Slotted

1шт.
