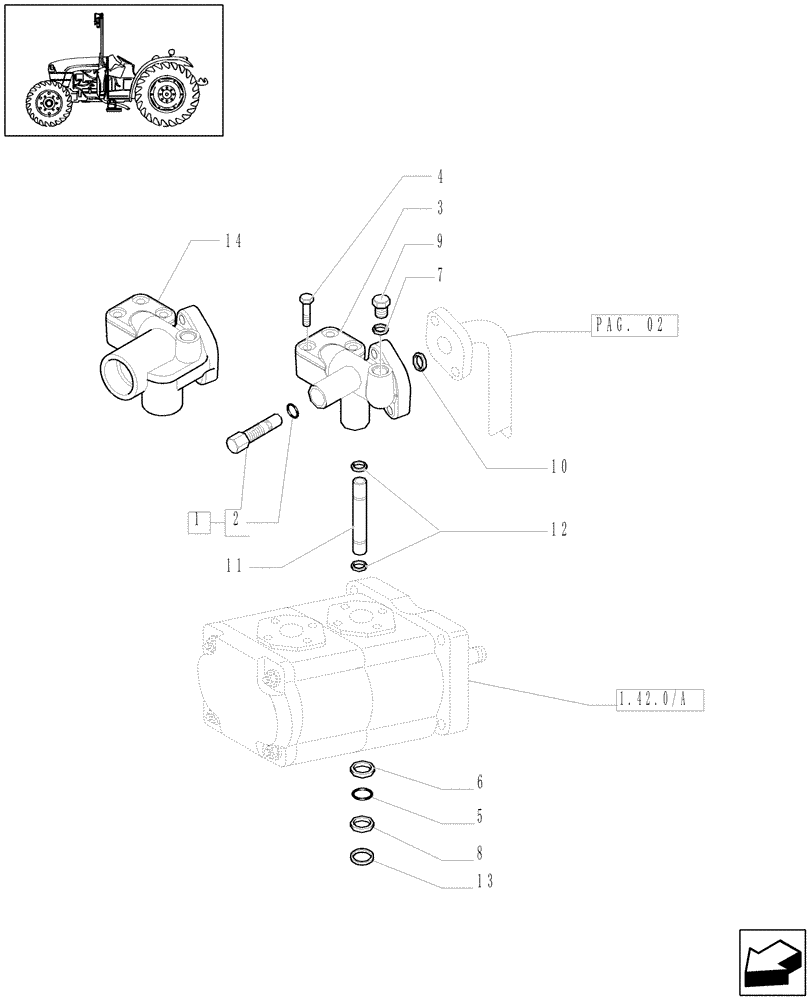

Запчасти Case IH JX1085C (1.82.1[03]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

1

47128782

VALVE PRESSURE RELIE

1шт.

2

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

3

47132040

SUPPORT

, Serial Range: -HJH066892

1шт.

4

14305621

HEX SOC SCREW,M6 x 35mm, Cl 8.8

3шт.

5

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

6

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

1шт.

7

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

8

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

9

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

10

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

1шт.

87307155

SEAL,27mm ID x 28mm OD x 2.2mm Thk

1шт.

11

47129568

TUBE

1шт.

12

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

13

87307155

SEAL,27mm ID x 28mm OD x 2.2mm Thk

27x0.5

1шт.

14

87353469

SUPPORT

, Start Serial: HJH066893

1шт.
