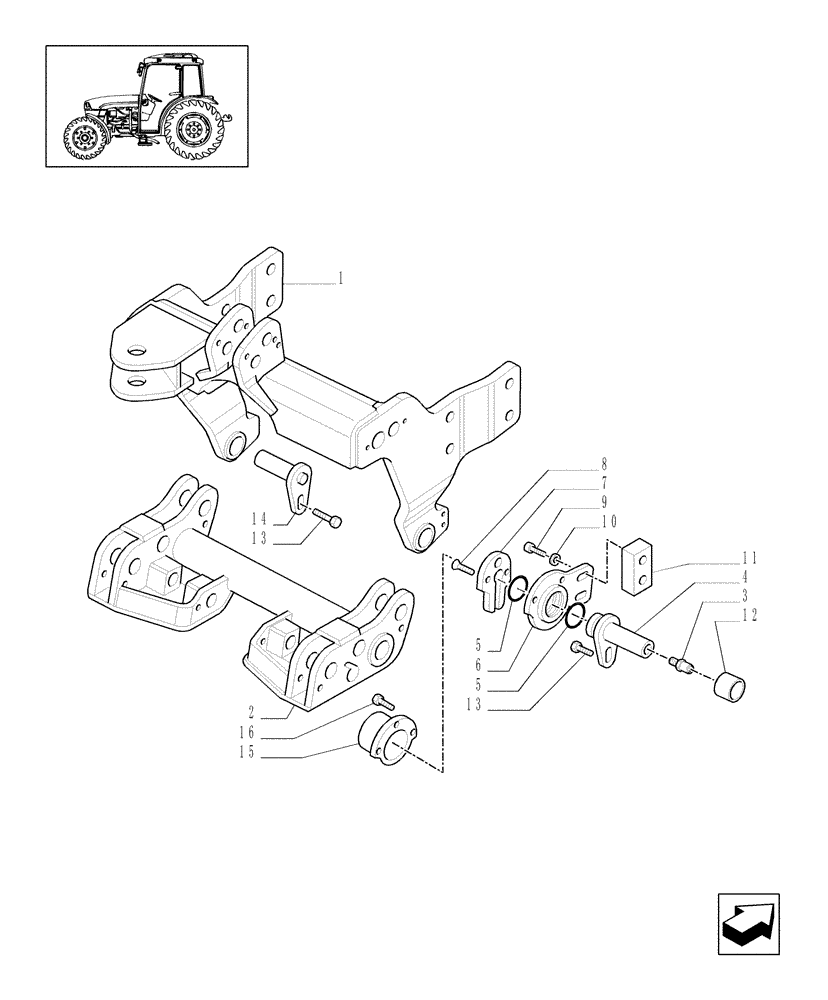

Запчасти Case IH JX1085C (1.81.9/01[01]) - (VAR.839) FRONT PTO LIFT FOR EDC - SUPPORTS (07) - HYDRAULIC SYSTEM

1

47057386

FRAME

1шт.

2

47057041

YOKE

1шт.

3

13407211

LUBE NIPPLE,M10 x 1

2шт.

4

47057185

PIN

1шт.

5

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

2шт.

6

47057187

HALF-BEARING, CRANKS

1шт.

7

47057184

RETAINER

1шт.

8

14439024

SCREW,Flat Csk Hd, M6 x 14mm, Cl 8.8

2шт.

9

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

10

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

11

87301871

SPACER

1шт.

12

47057044

BUSHING

2шт.

13

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

14

47057046

BOLT

1шт.

15

47057191

COVER

1шт.

16

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

3шт.

16

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

3шт.
