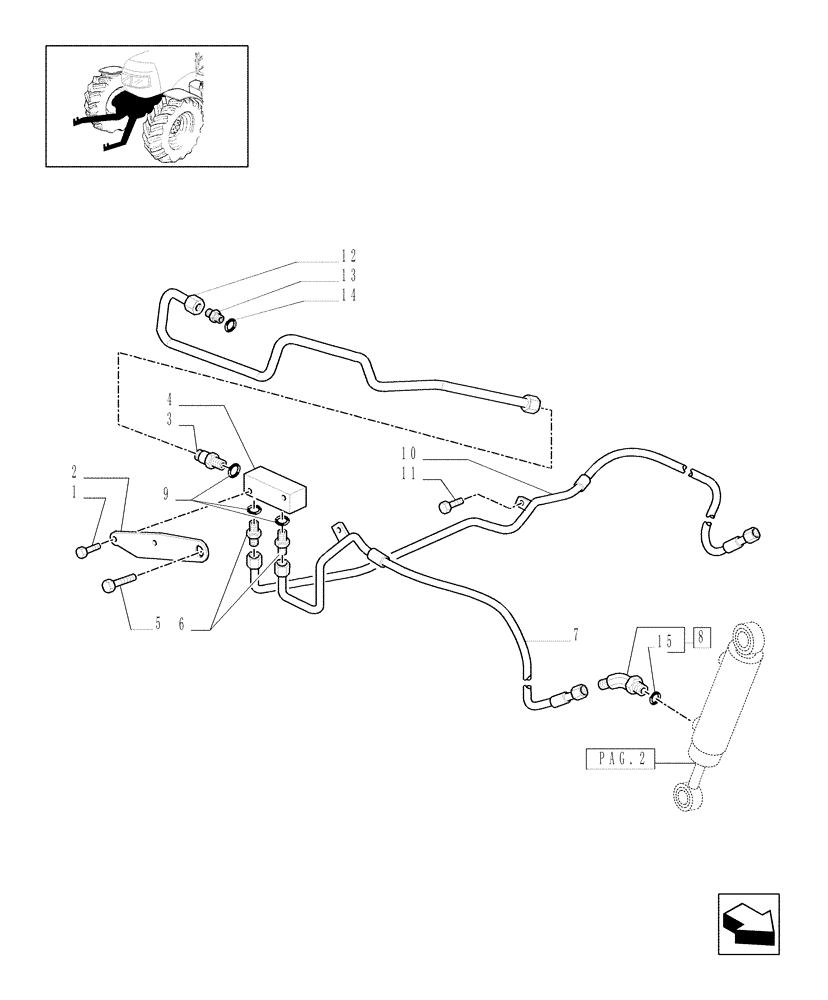

Запчасти Case IH JX1085C (1.81.9[04]) - (VAR.838) FRONT PTO LIFT FOR MDC - PIPES (07) - HYDRAULIC SYSTEM

1

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

2

87304152

BRACKET

1шт.

3

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

M22x1.5

1шт.

4

47057148

BLOCK

1шт.

5

11121321

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

M20x2.5x35

1шт.

6

5158803

HYD CONNECTOR,M22 x 1.5 ORB x 7/8" - 14 JIC

M22x1.5

2шт.

7

87304146

HYD TUBE

RH

1шт.

8

82005507

HYD CONNECTOR

M18x1.5

2шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

10

87304147

RIGID TUBE

LH

1шт.

11

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

12

87306173

RIGID TUBE,15 mm ID x 18 mm OD x 752.3 mm L

1шт.

13

5155665

HYD CONNECTOR

M18x1.5

1шт.

14

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

15

14457281

O-RING,0.612" ID x 0.103" Width

1шт.
