(1.80.5/01[01]) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - POWER TAKE-OFF

Запчасти Case IH JX1085C (1.80.5/01[01]) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - POWER TAKE-OFF (07) - HYDRAULIC SYSTEM

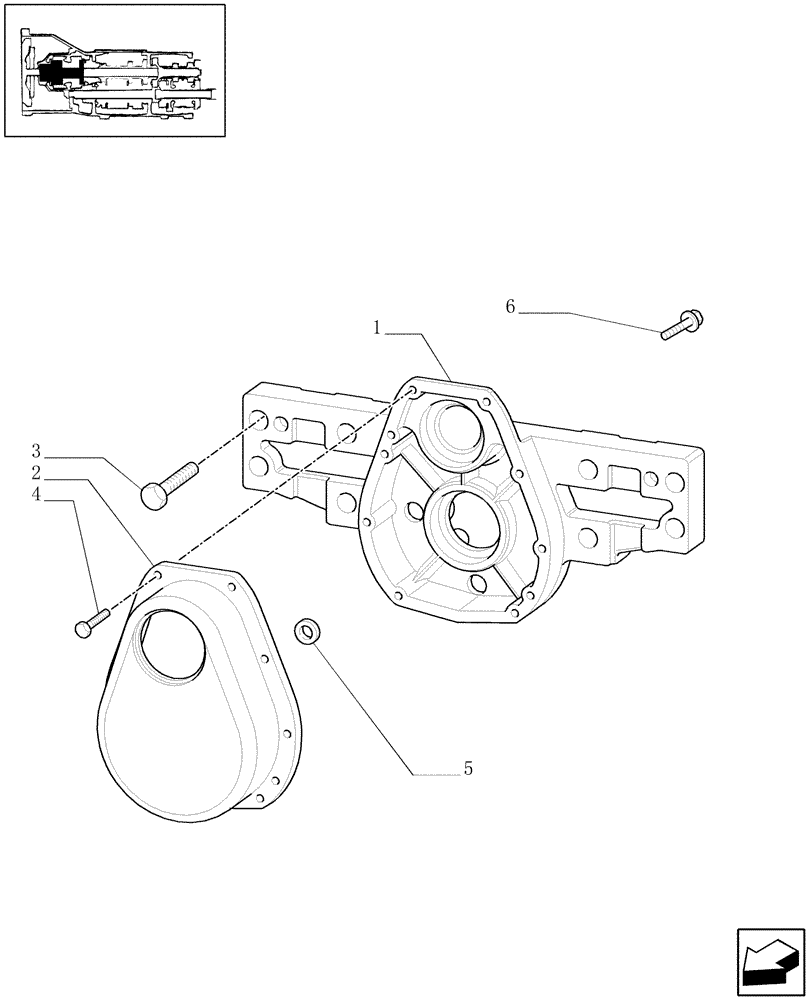

Схема запчастей Case IH JX1085C - (1.80.5/01[01]) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - POWER TAKE-OFF (07) - HYDRAULIC SYSTEM
4
5
2
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132413

HOUSING

1шт.

2

47132415

TOP COVER

Incl. 3

1шт.

3

11125121

BOLT,Hex, M20 x 70, 8.8

8шт.

4

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

5

10263450

SEAL,M22 ID x 28mm OD x 1.5mm Thk

2шт.

6

10305111

PLUG,M22 x 1.5 x 21, Cl5.8

2шт.
