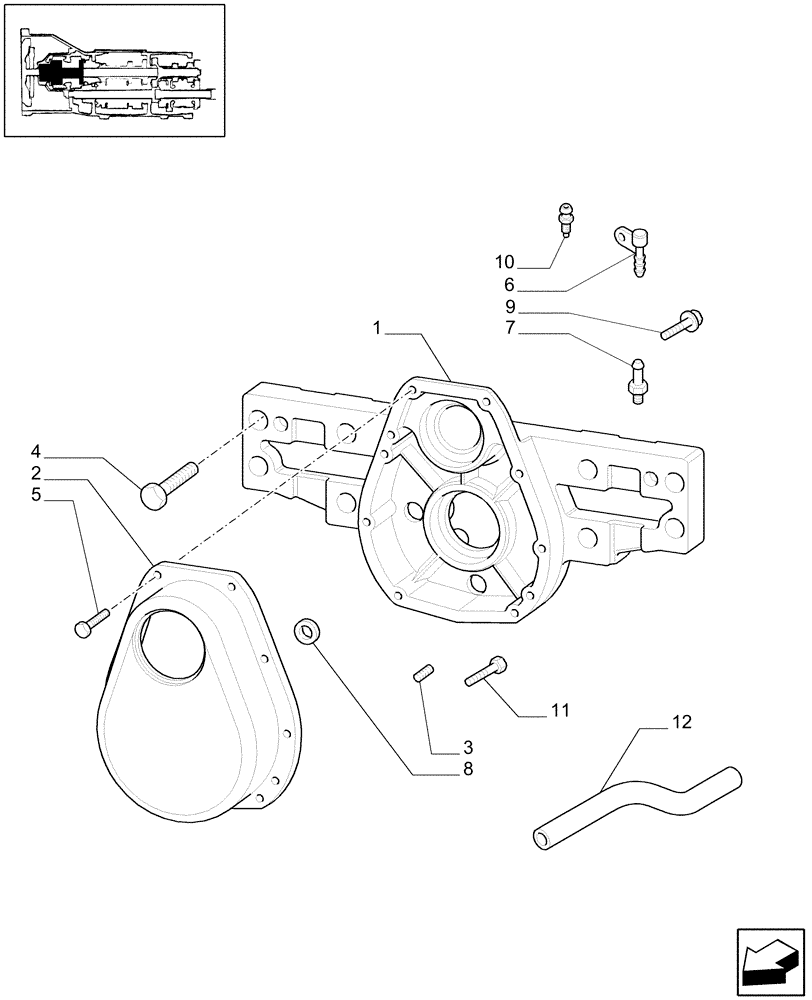

Запчасти Case IH JX1085C (1.80.5[01]) - (VAR.838-839) FRONT PTO LIFT - POWER TAKE-OFF (07) - HYDRAULIC SYSTEM

1

47132413

HOUSING

1шт.

2

47132415

TOP COVER

Incl. 3

1шт.

3

593742

DOWEL,8mm OD x 16mm L

8x16

2шт.

4

11125121

BOLT,Hex, M20 x 70, 8.8

8шт.

5

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

6

5153270

BREATHER

1шт.

7

5157395

FITTING

1шт.

8

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

9

10305171

PLUG,M22 x 1.5 x 21

2шт.

10

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

12

19053382

HOSE,10.00 mm

15x10

1шт.
