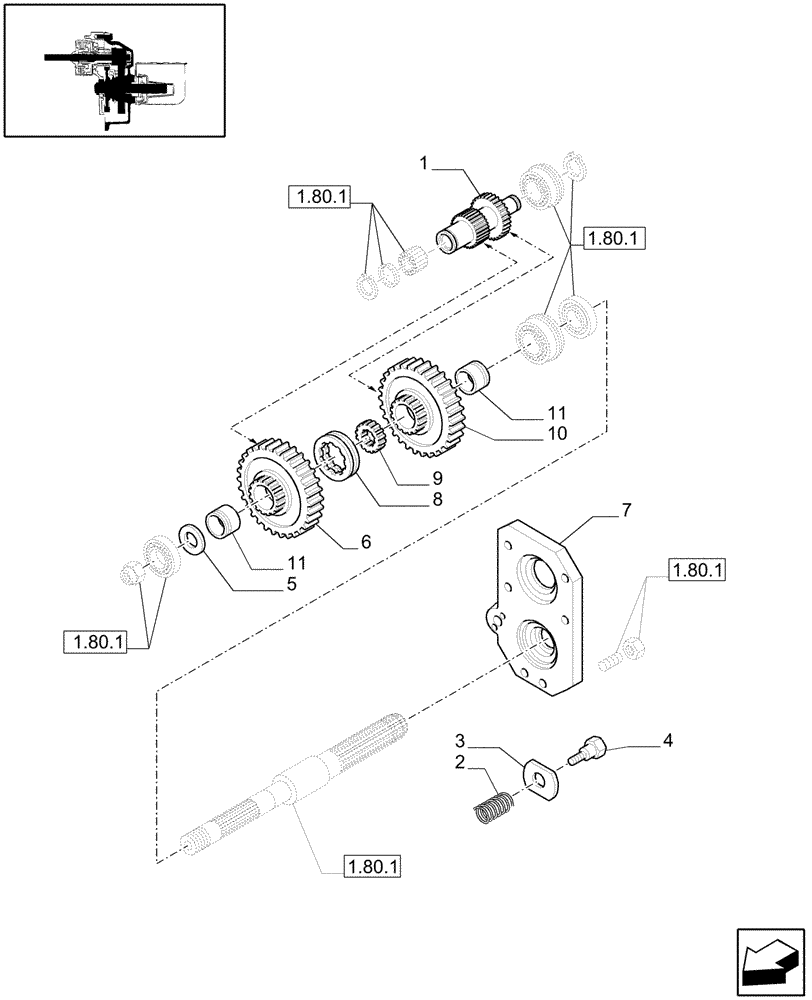

Запчасти Case IH JX1085C (1.80.1/04[01]) - (VAR.818) POWER TAKE-OFF (540-540E RPM) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

1

47125372

SHAFT

1шт.

2

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

3

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

1шт.

4

47130774

PIN,13.5mm OD x 22mm L

1шт.

5

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

1шт.

6

47123681

GEAR

540 RPM

1шт.

7

47133661

COVER

1шт.

8

5130551

SLEEVE,70mm ID x 100mm OD x 20mm L

1шт.

9

5130550

PINION,28T / 12T

1шт.

10

5168208

DRIVEN GEAR

750 RPM

1шт.

11

5124668

BUSHING,38mm ID x 46mm OD x 28mm L

2шт.
