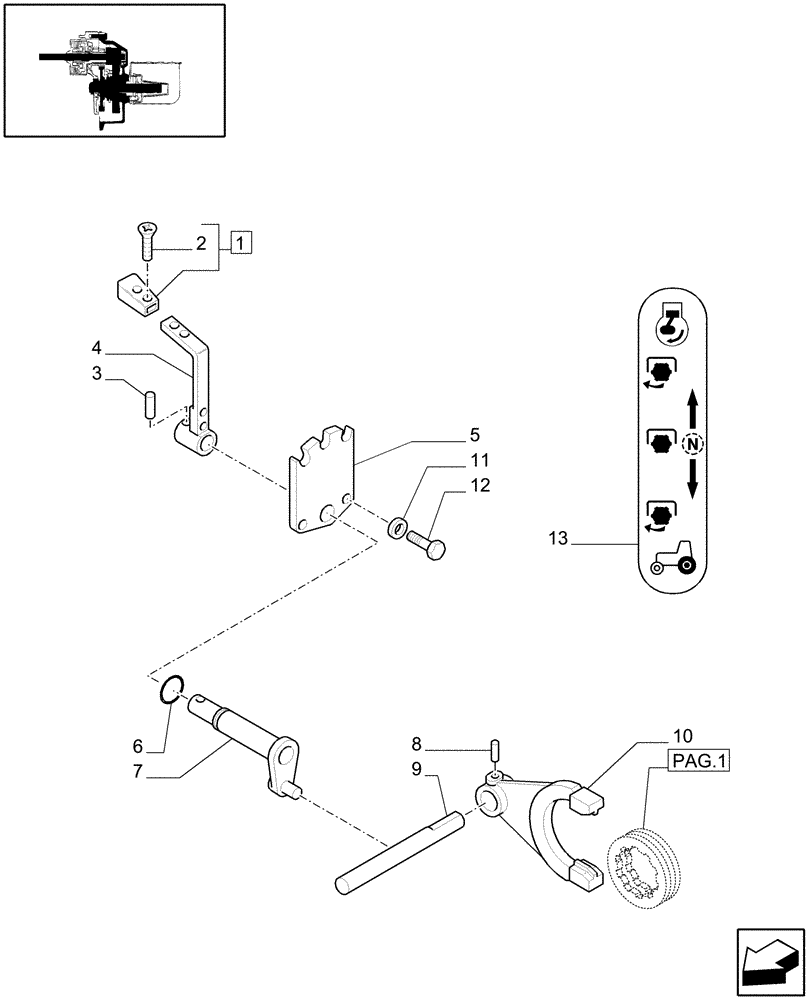

Запчасти Case IH JX1085C (1.80.1/01[02]) - (VAR.804) SYNCHRO MESH GEARED POWER TAKE-OFF (540-540E RPM) - ROD, FORK AND PLATES (07) - HYDRAULIC SYSTEM

1

5131161

HANDLE GRIP

1шт.

2

15919407

SCREW,Cross Flat Hd, M6.3 x 16

2шт.

3

14601270

ROLL PIN,M5 x 28, Slotted

1шт.

4

5177567

LEVER

1шт.

5

5177569

PLATE

TOOTHED SECTOR

1шт.

6

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

7

5173465

LEVER

1шт.

8

14604070

LOCK PIN,M6 x 28, Slotted

1шт.

9

5176335

ROD,16mm OD x 116mm L

1шт.

10

5173448

YOKE,16mm Hole Dia

1шт.

11

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10

2шт.

12

18700721

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

47136114

DECAL

PTO Indicator

1шт.
