Запчасти Case IH JX1085C (1.75.4/07) - (VAR.206-584) AIR HEATER ENGINE STARTING AID - HEATER, CABLES AND BRACKETS (06) - ELECTRICAL SYSTEMS

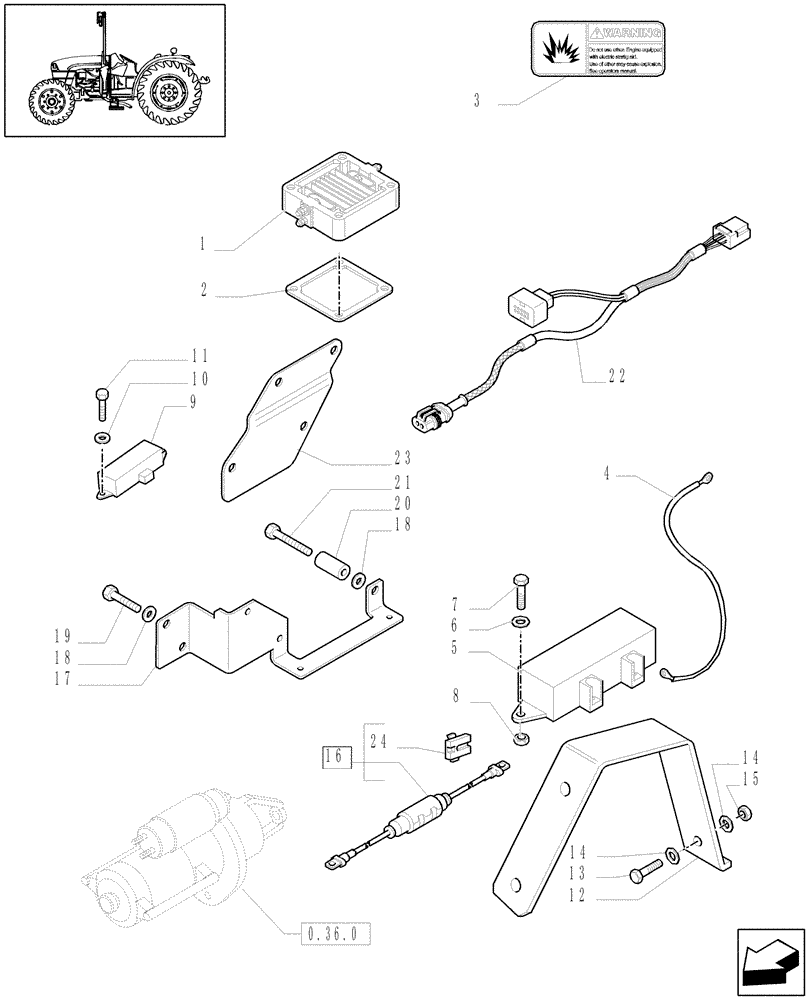

Схема запчастей Case IH JX1085C - (1.75.4/07) - (VAR.206-584) AIR HEATER ENGINE STARTING AID - HEATER, CABLES AND BRACKETS (06) - ELECTRICAL SYSTEMS
7
23
11
18
6
18
2
8
1
19
16
22
13
0.36.0
10
24
20
15
9
21
4
3
14
17
14
12
5

Артикул

Название

Примечание

Количество

1

2831019

HEATER,24V

1шт.

2

4899921

GASKET,1.2mm Thk

2шт.

3

87803277

WARNING DECAL

Ether

1шт.

4

47129391

WIRE HARNESS

1шт.

5

82022813

RELAY,12V, High Current

1шт.

6

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

7

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

8

12574211

NUT,M6 x 1, Cl 8

2шт.

9

47132002

HEATER

, Serial Range: -HJH081660

1шт.

9

87357538

ECU

, Start Serial: HJH081661

1шт.

10

11188674

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1mm Thk

6x12

2шт.

11

13276014

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

2шт.

12

87316939

BRACKET

1шт.

13

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

14

14447021

WASHER,5.5mm ID x 15mm OD x 1mm Thk

2шт.

15

12574221

NUT,M6 x 1, Cl 10

1шт.

16

87303541

ELECTRIC CABLE

Grid Heater Supply

1шт.

17

47134575

BRACKET

For VAR. 206 Only

1шт.

18

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

For VAR. 206 Only

3шт.

19

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

For VAR. 206 Only

2шт.

21

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

For VAR. 206 Only

1шт.

22

47135758

ELECTRIC CABLE

Grid Heater Unit Dashboard

1шт.

23

87305471

BRACKET

1шт.

24

87323673

BRACKET

2шт.

Выбрано товаров: 24
