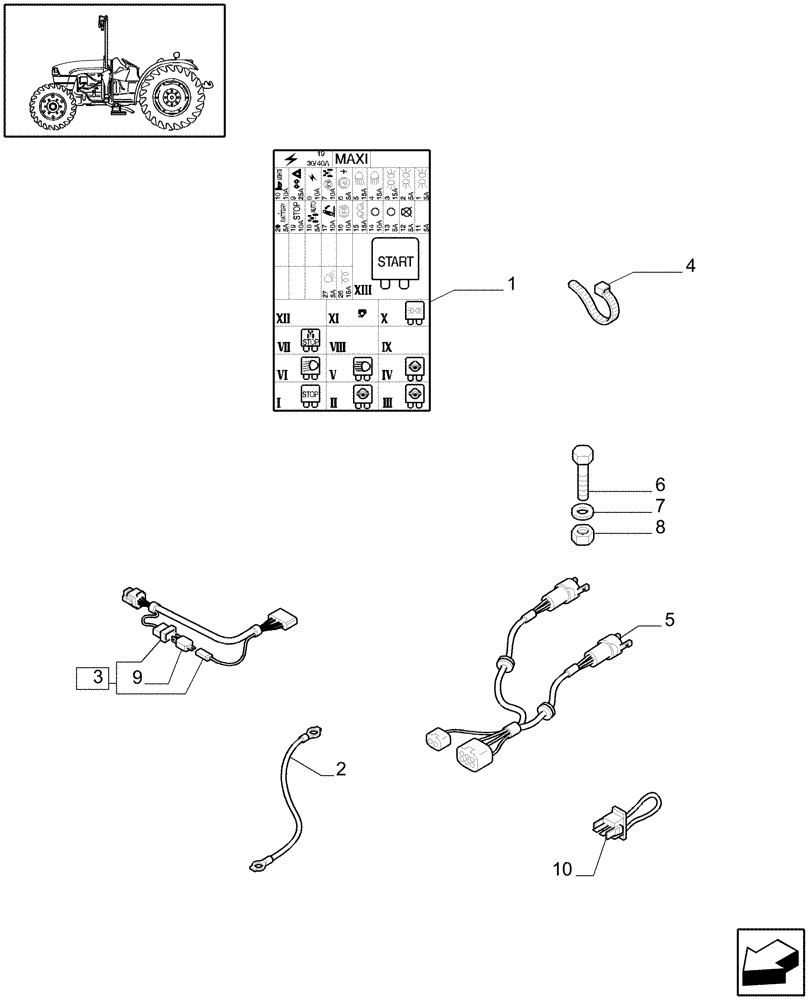

Запчасти Case IH JX1085C (1.75.4/04) - (VAR.007) NA PACKAGE - CABLES - L/CAB (06) - ELECTRICAL SYSTEMS

1

47129973

DECAL

1шт.

2

87309787

ELECTRIC CABLE

Ground

1шт.

3

5188081

WIRE HARNESS

Seat Safety Circuit

1шт.

4

85805383

CABLE TIE

CABLE STRAP

24шт.

5

5198442

ELECTRIC CABLE

1шт.

6

13271614

SCREW,Pozidriv Pan Hd, M4 x 6mm

1шт.

6

13279221

SCREW,Pozidriv Pan Hd, M8 x 16mm, Cl 8.8, Full Thd

4шт.

6

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

2шт.

7

10615774

WASHER

D=10

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

7

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

7

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

7

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

1шт.

8

15896414

NUT,M5, Cl 8

2шт.

8

15896211

NUT,M6, Cl 8

1шт.

9

83929594

DIODE

1шт.

10

47125756

JUMPER

C21, Serial Range: -HJH076230

1шт.

10

87371844

ELECTRIC CABLE

C21, Start Serial: HJH076231

1шт.
