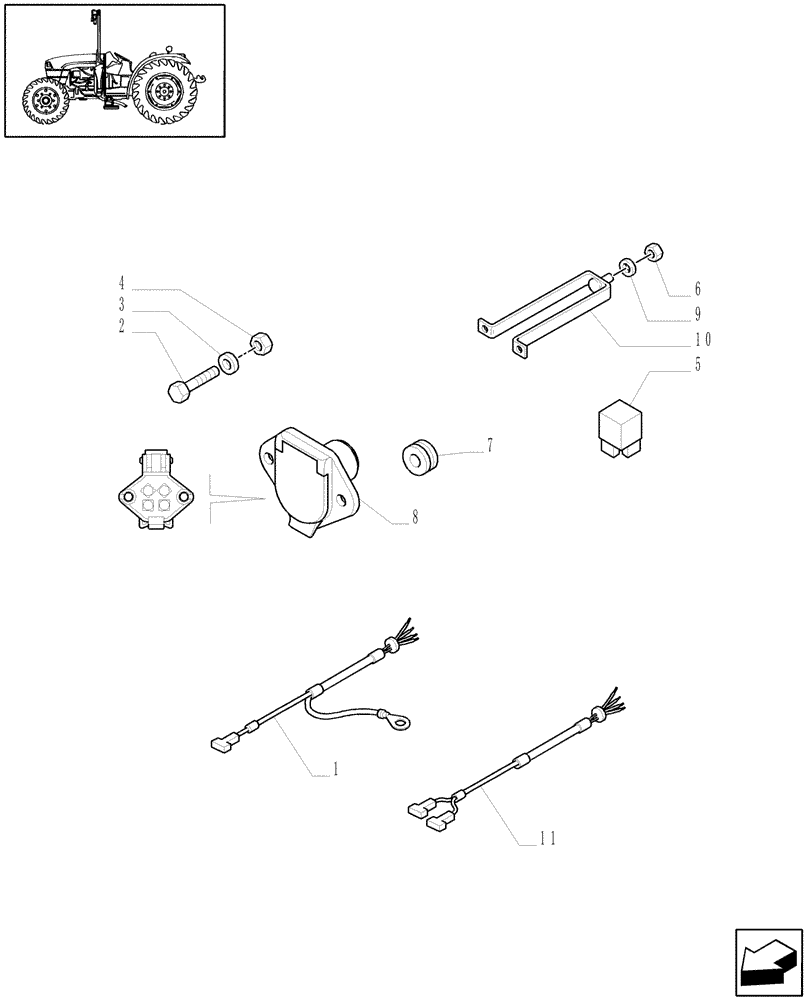

Запчасти Case IH JX1085C (1.75.4/03) - (VAR.738/1) ADDITIONAL POWER POINTS - NA (06) - ELECTRICAL SYSTEMS

1

5198034

ELECTRIC CABLE

40A, Incl. 7, 8, L/Cab

1шт.

1

47136879

ELECTRIC CABLE

40A, Incl. 7, 8, W/Cab, Serial Range: -HJH052980

1шт.

2

13272621

SCREW,Cross Pan Hd, M4 x 25mm, Cl 8.8

2шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

4

10794014

NUT,M4, Cl 8

2шт.

5

5190333

FUSE,40A, Maxi, Orange

40A, Orange

1шт.

6

12575411

LOCK NUT,M6 x 1, Cl 8

1шт.

7

10397780

INSULATING RING

1шт.

8

83982634

POWER SOCKET

4 Pole

1шт.

9

11194774

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

10

5185640

BRACKET

W/Cab

1шт.

11

87339195

ELECTRIC CABLE

40A ,incl.7,8, W/Cab, Start Serial: HJH052981

1шт.
