Запчасти Case IH JX1085C (1.75.4[01]) - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS

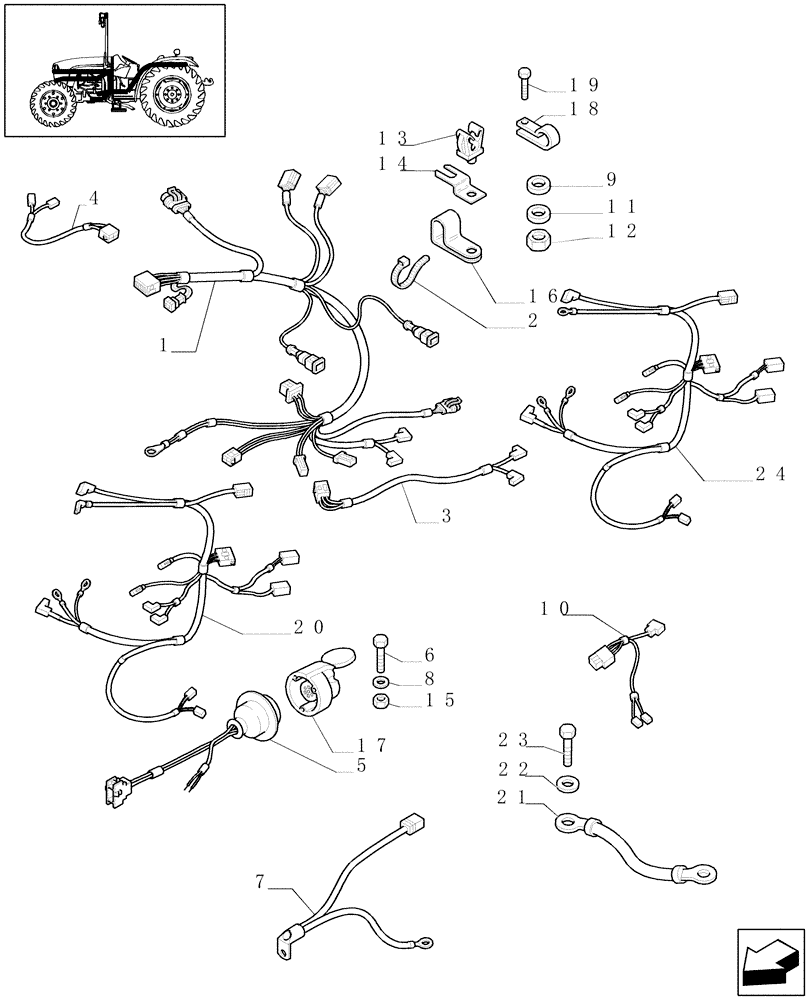

Схема запчастей Case IH JX1085C - (1.75.4[01]) - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS
15
6
21
16
3
19
7
20
24
13
9
5
1
10
17
8
11
2
14
22
23
12
4
18

Артикул

Название

Примечание

Количество

1

47134759

ELECTRIC CABLE

Trasmission Harness

1шт.

2

14560287

CABLE TIE,207.00mm L

COLLAR

5шт.

3

5189718

WIRE HARNESS

Extension for Switch

1шт.

4

5191651

ELECTRIC CABLE

4WD Mech. Warning Light Extension, JX1085C

1шт.

5

47132892

ELECTRIC CABLE

Incl. 17

1шт.

5

47132893

ELECTRIC CABLE

Incl. 17, VAR.760

1шт.

6

13272924

SCREW,M4 x 35mm

M4x35

3шт.

7

87305997

ELECTRIC CABLE

Harness from Starting Eng. to Eng. Connection and Alternator

1шт.

8

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

9

12605671

LOCK WASHER,Int Tooth, M10

1шт.

10

5191652

ELECTRIC CABLE

4WD Hydr. Warning Light Extension

1шт.

11

12598374

LOCK WASHER

D=8

1шт.

12

10794014

NUT,M4, Cl 8

1шт.

13

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

3шт.

14

5120229

PLATE

3шт.

15

10794014

NUT,M4, Cl 8

3шт.

16

5112231

RETAINER COLLAR

1шт.

17

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

18

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

10 mm dia.

4шт.

19

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

4шт.

20

47134767

ELECTRIC CABLE

Engine Side

1шт.

21

5172968

GROUND STRAP

VAR.105

1шт.

22

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

23

13624921

SCREW,M8 x 28mm, Cl 8.8

M8x28

1шт.

24

87314349

ELECTRIC CABLE

Engine Side Harness

1шт.

Выбрано товаров: 25
