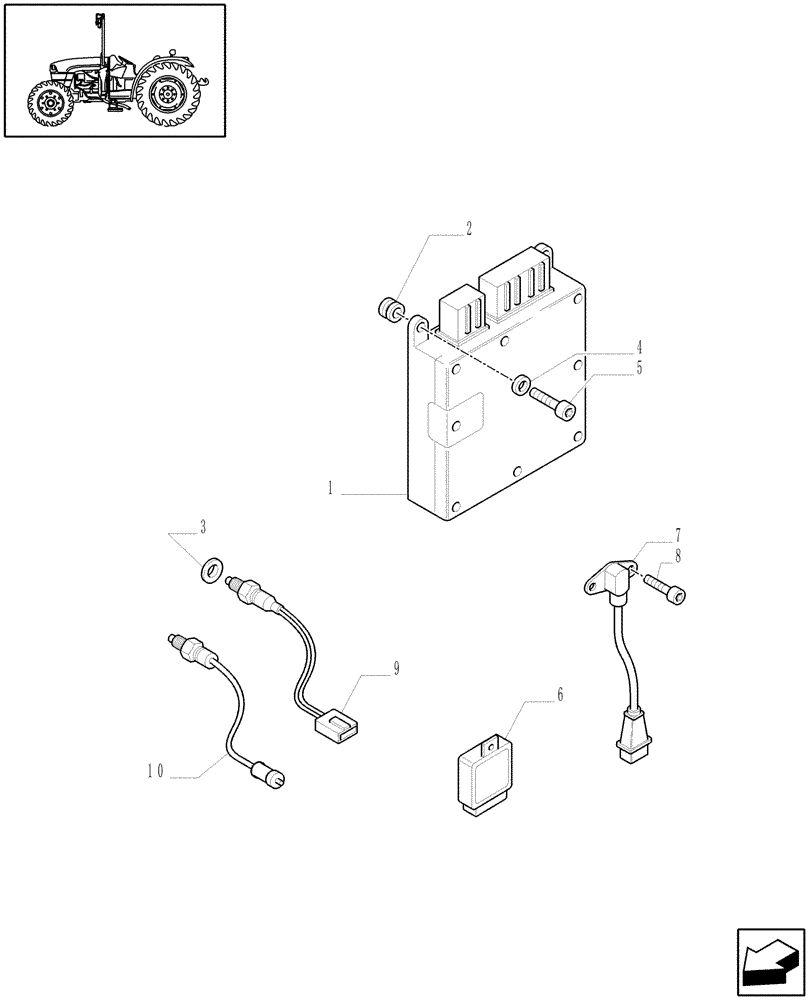

Запчасти Case IH JX1085C (1.75.1/07) - (VAR.067) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRONIC CONTROL UNIT - L/CAB (06) - ELECTRICAL SYSTEMS

1

47137064

ECU

1шт.

P/Shuttle Control

1шт.

1

87575340R

REMAN ELECT CONTROL

P/Shuttle Control

1шт.

1

87575340C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

5175382

RUBBER RING

D=10

1шт.

3

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

2шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

6

5188605

BUZZER,12V, 0.7A

2шт.

7

87564764

SENSOR

1шт.

PTO Speed

1шт.

8

10977514

BOLT,Hex, M5 x 10mm, Cl 5.8, Full Thd

M5x10

2шт.

9

47132568

SWITCH

, Serial Range: -C5561

1шт.

Gear Engagement, Grey

1шт.

9

47132569

SWITCH

, Serial Range: -C5561

1шт.

Gear Range, Green

1шт.

10

87585979

SWITCH

, Start Serial: D5561

1шт.

Gear Engagement, Grey

1шт.

10

87585980

SWITCH

, Start Serial: D5561

1шт.

Gear Range, Green

1шт.
