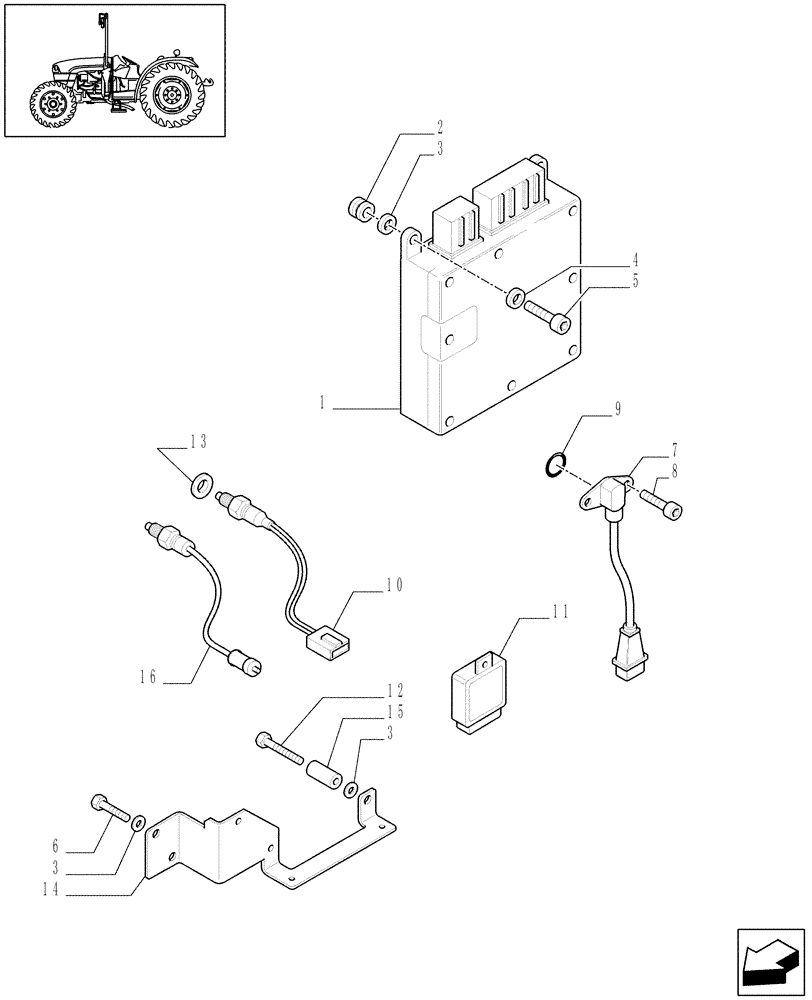

Запчасти Case IH JX1085C (1.75.1/03) - (VAR.270) DUAL COMM. (2 SPS) 32X16 (30KM/H) W. HEAT EXCH. & ADJ. COLUMN - ELECTRONIC CONTR.UNIT (06) - ELECTRICAL SYSTEMS

1

47137064

ECU

1шт.

1

87575340R

REMAN ELECT CONTROL

1шт.

1

87575340C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

5175382

RUBBER RING

D=10

1шт.

3

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

6

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

7

87564764

SENSOR

PTO Speed

2шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

4шт.

9

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

10

47132568

SWITCH

Grey, Serial Range: -C5561

2шт.

10

47132569

SWITCH

Green, Serial Range: -C5561

2шт.

11

5188605

BUZZER,12V, 0.7A

Trans.Temp

1шт.

12

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

1шт.

13

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

4шт.

14

47134575

BRACKET

1шт.

15

47134580

SPACER

1шт.

16

87585979

SWITCH

Grey, Start Serial: D5561

2шт.

16

87585980

SWITCH

Green, Start Serial: D5561

2шт.
