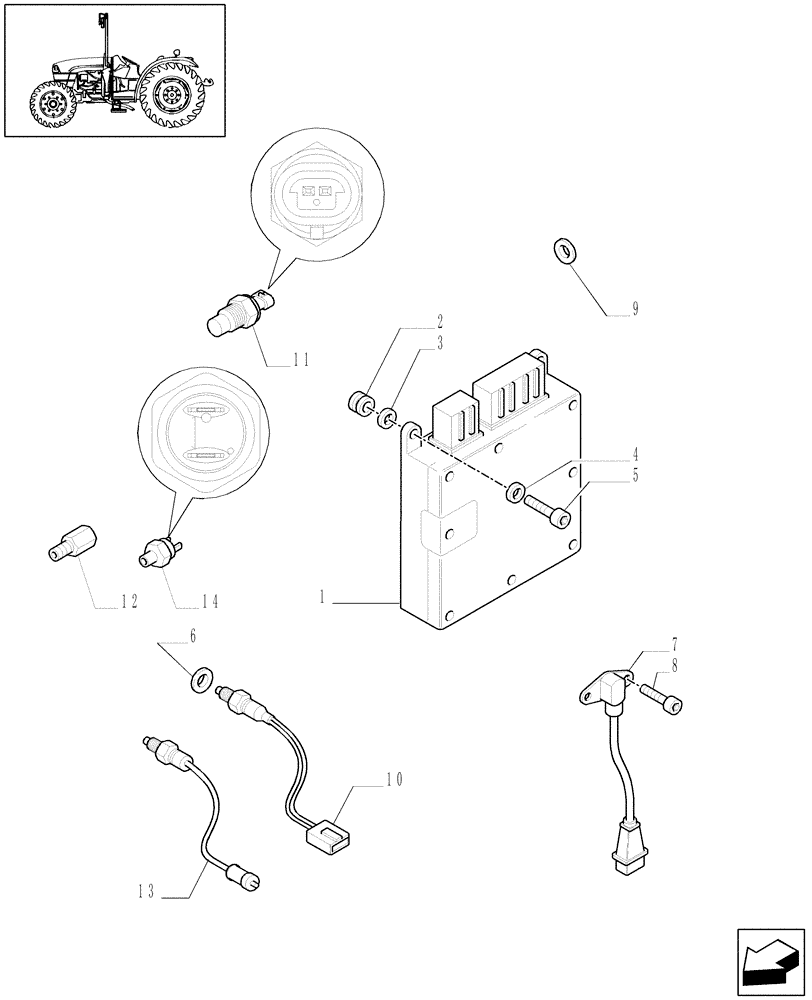

Запчасти Case IH JX1085C (1.75.1/01) - (VAR.278-278/1-296) NA - 16X16 (30 KM/H) P.SHUTT. W/OIL COOLER - ELECTRONIC CONTROL UNIT (06) - ELECTRICAL SYSTEMS

1

47137064

ECU

, Serial Range: -C5651

1шт.

1

87575340R

REMAN ELECT CONTROL

1шт.

1

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

1

87575340

ECU

P/Shuttle Control, Start Serial: D5651

1шт.

1

87575340R

REMAN ELECT CONTROL

Remanufactured Electronic Control Unit

1шт.

1

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

2

5175382

RUBBER RING

D=10

1шт.

3

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

2шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

6

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

2шт.

7

87564764

SENSOR

PTO Speed

1шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

9

10280060

SEAL,M14.2 x 20 x 1.5

2шт.

10

47132568

SWITCH

Grey, Serial Range: -C5561

1шт.

10

47132569

SWITCH

Green, Serial Range: -C5561

1шт.

11

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

12

87745448

HYD CONNECTOR,M12 x 1.5 NPT x M12 x 1.5 NPT

1шт.

13

87585979

SWITCH

, Start Serial: D5561

1шт.

Gear Engagement, Grey

1шт.

13

87585980

SWITCH

, Start Serial: D5561

1шт.

Gear Range, Green

1шт.

14

5157750

PRESSURE SWITCH

1шт.
