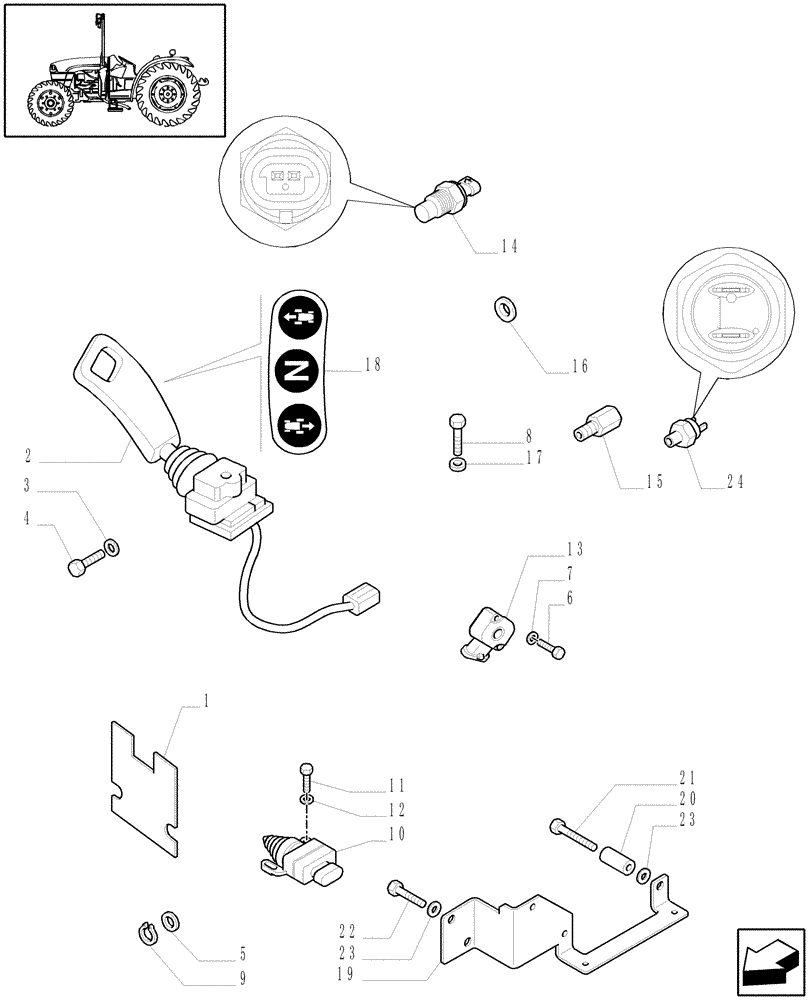

Запчасти Case IH JX1085C (1.75.0/08) - (VAR.067) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - CONTROL LEVER AND SWITCH - L/CAB (06) - ELECTRICAL SYSTEMS

1

47125156

INSULATOR

1шт.

2

47056952

LEVER

1шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

4

14303124

HEX SOC SCREW,M4 x 14mm, Cl 8.8, Full Thd

3шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

6

14358721

HEX SOC SCREW,M5 x 35mm, Cl 8.8

2шт.

7

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

8

14303424

HEX SOC SCREW,M4 x 25mm, Cl 8.8, Full Thd

2шт.

9

87016950

SNAP RING,M7, Ext

1шт.

10

47137022

SWITCH

1шт.

Snap Action Switch

1шт.

11

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

1шт.

12

47137022

SWITCH

4x9x0,7

2шт.

13

82021035

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

14

82028133

SENSOR,3/8"-18

Transmission Temperature

1шт.

15

87745448

HYD CONNECTOR,M12 x 1.5 NPT x M12 x 1.5 NPT

1шт.

16

2852356

SEALING WASHER

14x20x1,5

1шт.

17

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4x9

2шт.

18

87364176

DECAL

1шт.

19

47134575

BRACKET

1шт.

20

47134580

SPACER

1шт.

21

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

1шт.

22

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

23

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

24

5157750

PRESSURE SWITCH

1шт.
