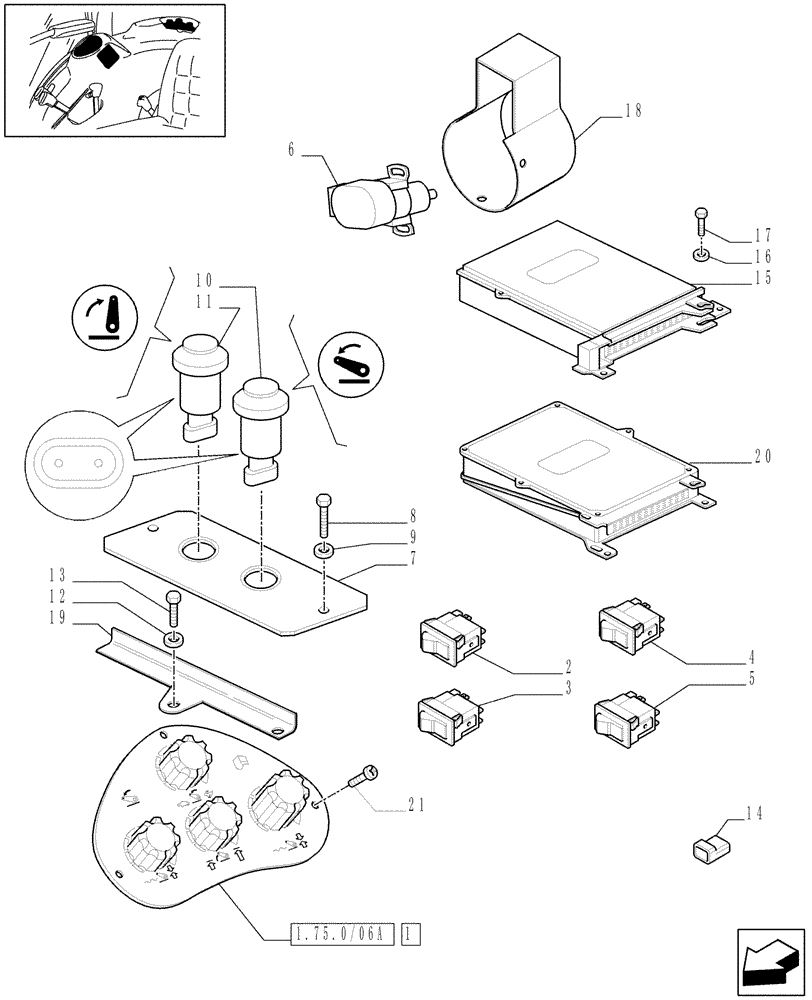

Запчасти Case IH JX1085C (1.75.0/06) - (VAR.839) FRONT PTO LIFT FOR EDC - ELECTRIC CONTROLS (06) - ELECTRICAL SYSTEMS

1

47133067

PANEL

ASSY

1шт.

2

47056282

TOGGLE SWITCH

Master EFH, Green

1шт.

3

47056284

TOGGLE SWITCH

Operation Change EFH, Green

1шт.

4

47056416

TOGGLE SWITCH

Up/Down, Green, External in Cab

1шт.

5

47056414

TOGGLE SWITCH

EFH, Raise/Work, Green

1шт.

6

87747160

SENSOR

Angle, EFH

1шт.

7

47056045

BRACKET

1шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

9

12604274

WAVE WASHER,Wave, M6.4

2шт.

10

47057242

HITCH UP/DOWN SWITCH

FHPL, External Down

1шт.

11

47057241

HITCH UP/DOWN SWITCH

FHPL, External Up

1шт.

12

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

13

14301824

HEX SOC SCREW,M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

14

47057079

DIODE

1шт.

15

47057488

ECU

EFH, Serial Range: -C6314

1шт.

16

11194774

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

17

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

18

87301837

SHIELD

1шт.

19

47056886

SUPPORT

1шт.

20

84176311

ECU

EFH, Start Serial: D6314

1шт.

21

5182260

SELF-TAP SCREW,M5 x 16mm L

5 x 16

1шт.
