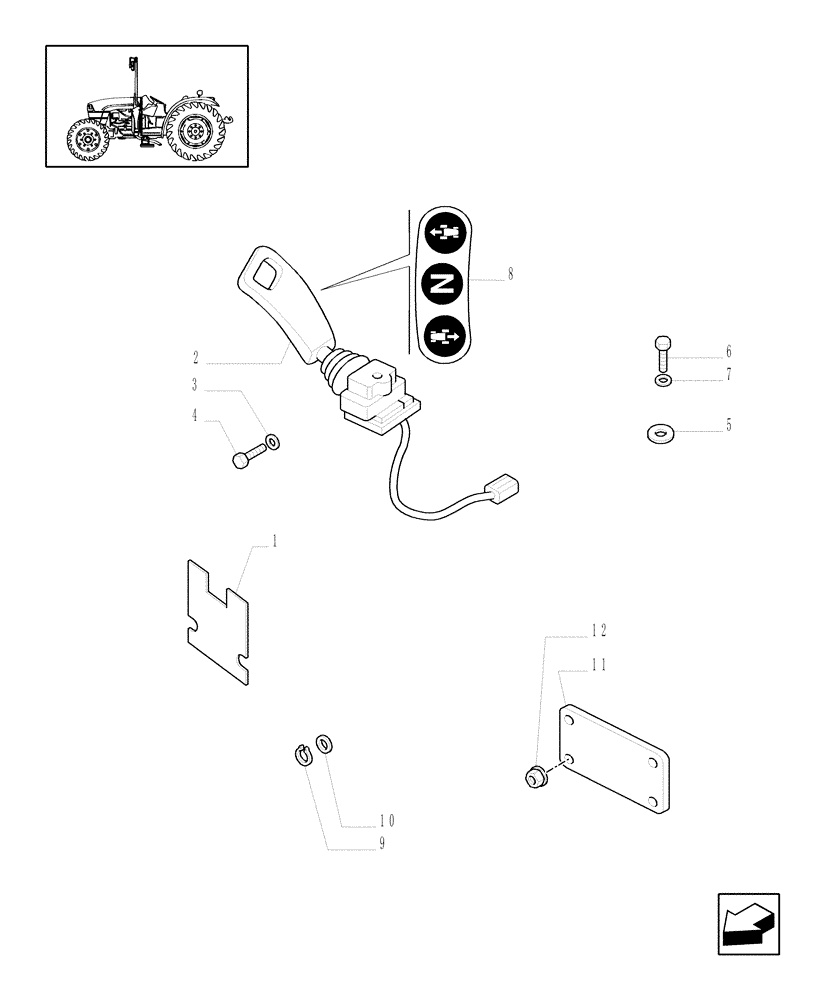

Запчасти Case IH JX1085C (1.75.0/02) - (VAR.278-278/1-296) NA - 16X16 (30 KM/H) P.SHUTT. W/OIL COOLER - CONTROL LEVER AND SWITCH (06) - ELECTRICAL SYSTEMS

1

47125156

INSULATOR

1шт.

2

47132542

LEVER

1шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

3

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4x9

2шт.

4

14303124

HEX SOC SCREW,M4 x 14mm, Cl 8.8, Full Thd

3шт.

5

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

4

14303424

HEX SOC SCREW,M4 x 25mm, Cl 8.8, Full Thd

2шт.

6

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

7

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

8

87364176

DECAL

1шт.

9

87016950

SNAP RING,M7, Ext

1шт.

10

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

11

5183784

COVER PLATE

1шт.

12

12578017

FLANGE NUT,Hex, M5 x 0.8, Cl 8

4шт.
