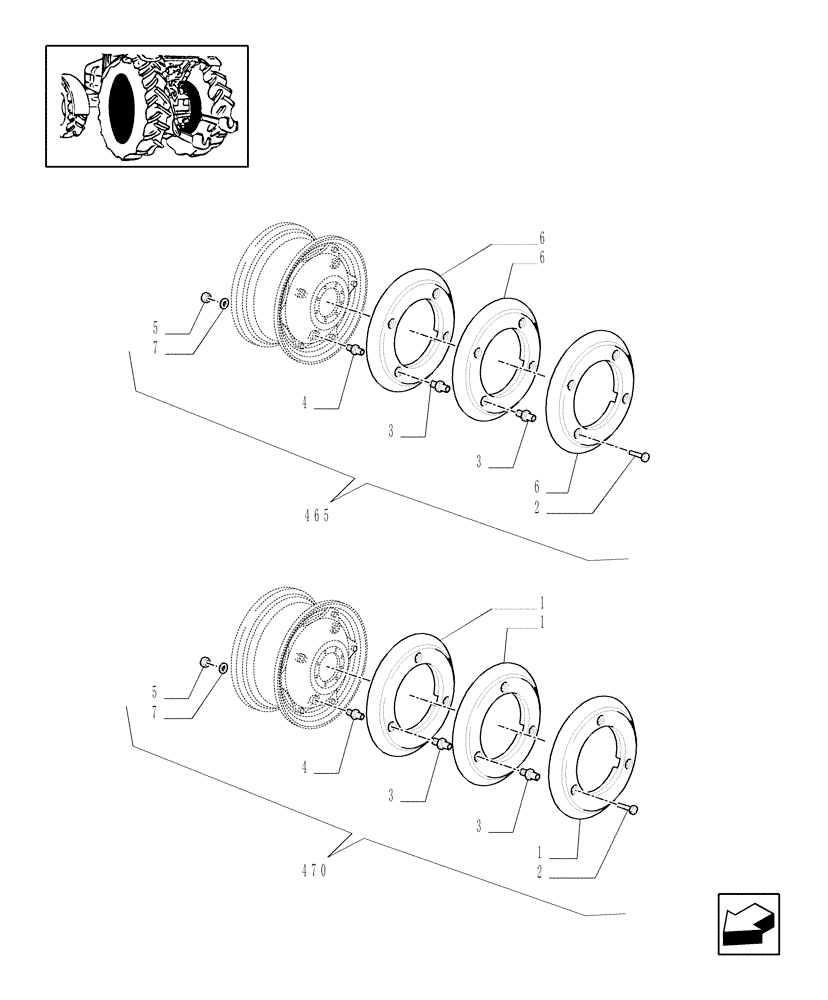

Запчасти Case IH JX1085C (1.48.2) - (VAR.465-470) REAR BALLAST (05) - REAR AXLE

1

47131052

WHEEL WEIGHT,50Kg/110Lb

VAR.470

4шт.

3 bolts on circle =410mm.

1шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

M16x1.5x78

1шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

M16x1.5x60

1шт.

5

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

M16x1.5

1шт.

6

47131265

WHEEL DISC,330mm Dia, 4 Bolts, CNH Dark Grey

VAR.465

6шт.

4 bolts on circle =330mm .

1шт.

7

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.
