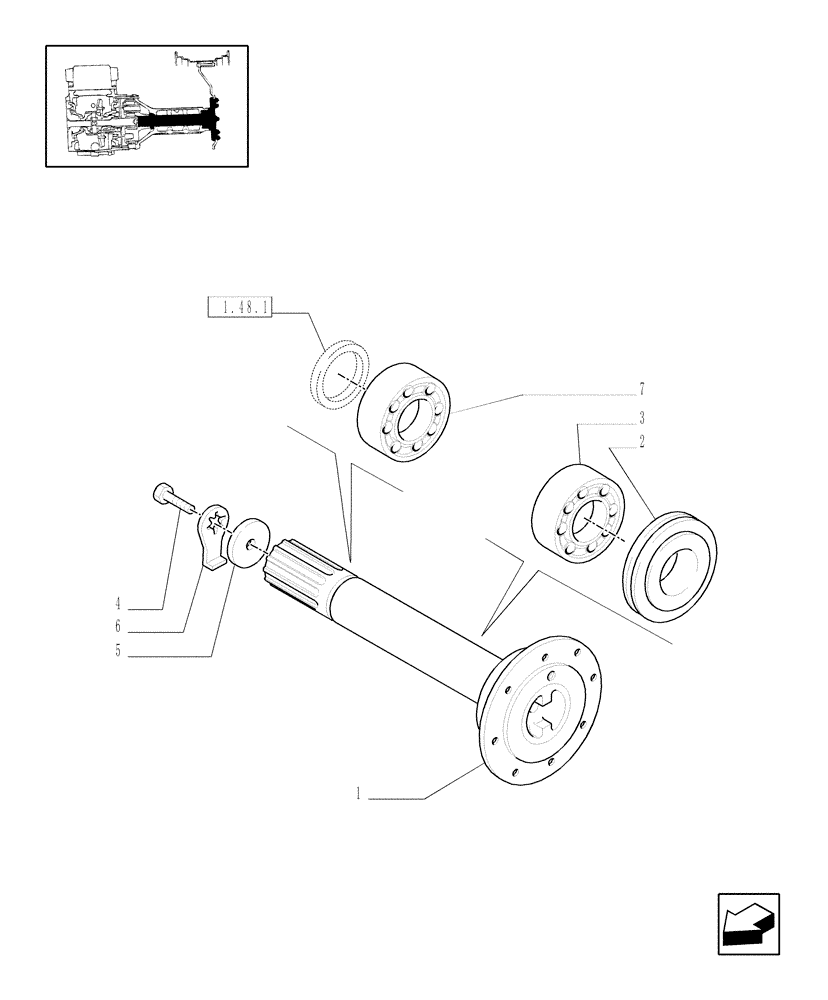

Запчасти Case IH JX1085C (1.48.1/01[01]) - (VAR.445-449) RICE FIELD VERSION - FINAL DRIVE, GEARS AND SHAFTS (05) - REAR AXLE

1

5182073

CONTROL SHAFT

JX1085C

2шт.

1

87305193

CONTROL SHAFT

JX1095C

2шт.

2

5144973

SEAL,104mm ID x 135mm OD x 28mm Thk

104 x 135 x 28

2шт.

3

26794670

BALL BEARING,65mm ID x 120mm OD x 23mm W

65x120x23

2шт.

4

14258031

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

5

4997201

DISC,16.5mm ID x 70mm OD x 80mm Thk

2шт.

6

4997202

LOCKING PLATE,24.1mm ID x 28mm OD x 2mm Thk

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

2шт.
