Запчасти Case IH JX1085C (1.42.0/06) - (VAR.275-275/1) 32X16 (30KM/H) TRANSM. W/HI-LO & POWER SHUTTLE, W/OIL COOLER - OIL PUMP (04) - FRONT AXLE & STEERING

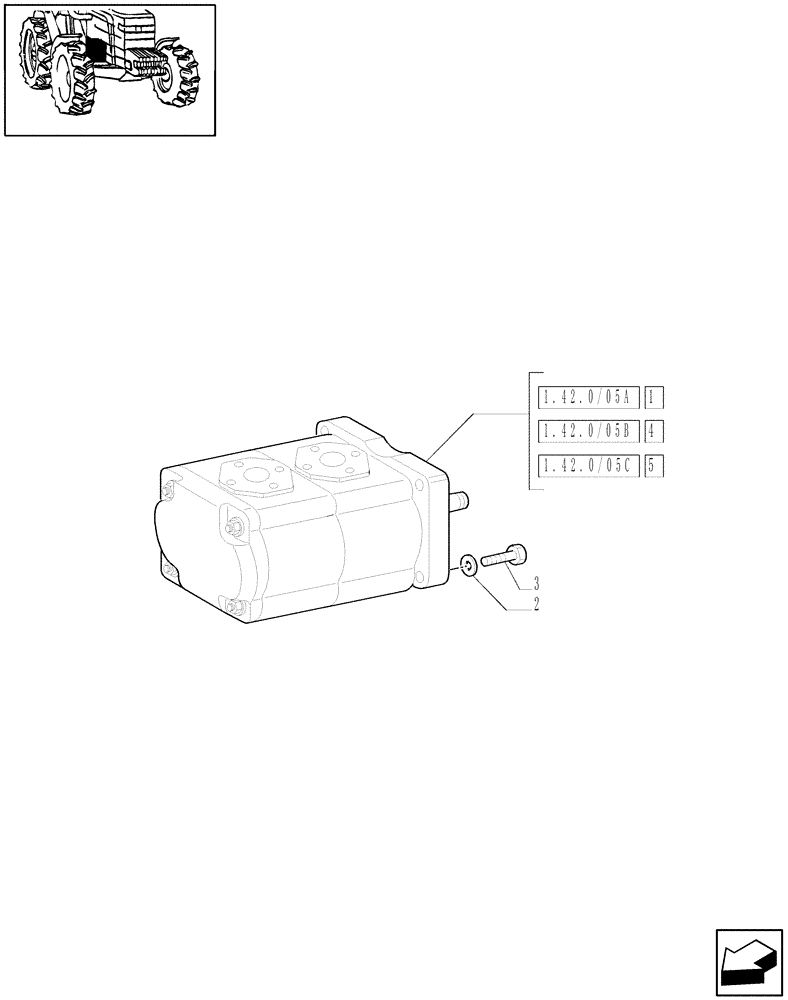

Схема запчастей Case IH JX1085C - (1.42.0/06) - (VAR.275-275/1) 32X16 (30KM/H) TRANSM. W/HI-LO & POWER SHUTTLE, W/OIL COOLER - OIL PUMP (04) - FRONT AXLE & STEERING
5
1.42.0/05c
1.42.0/05b
4
1.42.0/05a
3
2
1

Артикул

Название

Примечание

Количество

1

47129338

HYDRAULIC PUMP,22.9 CC

ASSY, Serial Range: -C5573

1шт.

1

47129338R

REMAN-HYD PUMP

JX1085C & JX1095C w/ 32 X 16 Trans., Hi/Lo, Pwr. Shutt., Prior To SN C5573

1шт.

1

47129338C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

87386049

HYDRAULIC PUMP,DOUBLE, 25.45 CC + 14.62 CC

ASSY, Serial Range: D5573-C5996

1шт.

4

87472285R

REMAN-HYD PUMP

, Serial Range: D5573-C5996

1шт.

4

87472285C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

87472285

HYDRAULIC PUMP,DOUBLE, 25.45 CC + 14.62 CC

ASSY, Start Serial: D5996

1шт.

5

87472285R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

5

87472285C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

Выбрано товаров: 11
