Запчасти Case IH JX1085C (1.42.0/04) - (VAR.823-826) "BOSCH" HIDRAULIC PUMP X=64L/MIN - OIL PUMP (04) - FRONT AXLE & STEERING

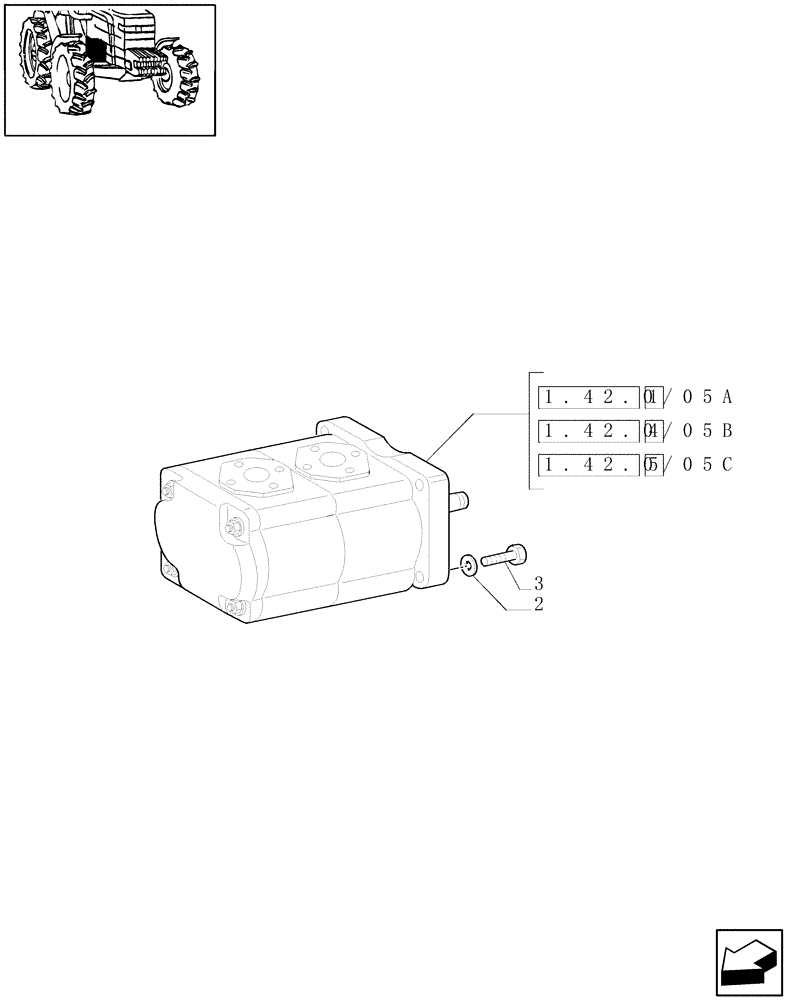

Схема запчастей Case IH JX1085C - (1.42.0/04) - (VAR.823-826) "BOSCH" HIDRAULIC PUMP X=64L/MIN - OIL PUMP (04) - FRONT AXLE & STEERING
1.42.0/05b
5
1.42.0/05a
2
1
1.42.0/05c
4
3

Артикул

Название

Примечание

Количество

1

47129338

HYDRAULIC PUMP,22.9 CC

ASSY, Serial Range: -C5573

1шт.

1

47129338R

REMAN-HYD PUMP

JX1085C & JX1095C w/ Bosch Hyd.Pmp., Prior To SN C5573

1шт.

1

47129338C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

87472285

HYDRAULIC PUMP,DOUBLE, 25.45 CC + 14.62 CC

ASSY, Start Serial: D5996

1шт.

5

87472285R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

5

87472285C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

Выбрано товаров: 8
