Запчасти Case IH JX1085C (1.40.6/08[02]) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - FRONT AXLE W/BRAKES (40KM/H) - HYDRAULIC DIFF. LOCK CONTROL (04) - FRONT AXLE & STEERING

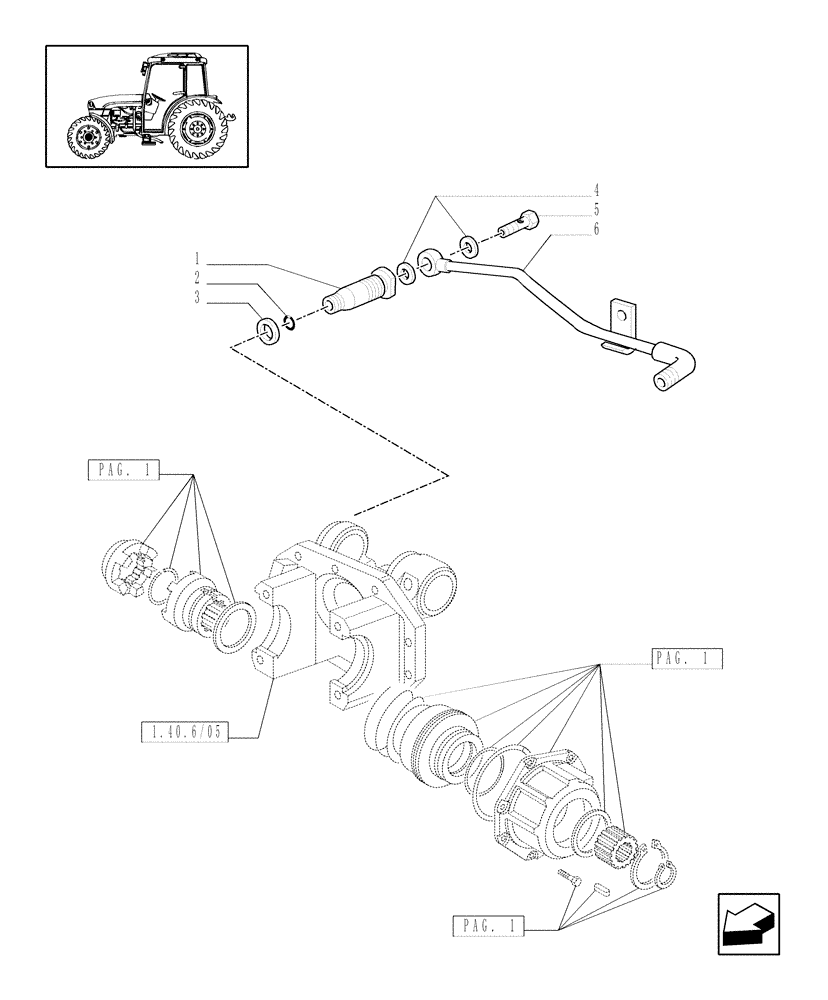

Схема запчастей Case IH JX1085C - (1.40.6/08[02]) - (VAR.030-031) FRONT HPL W/PTO & BRAKES - FRONT AXLE W/BRAKES (40KM/H) - HYDRAULIC DIFF. LOCK CONTROL (04) - FRONT AXLE & STEERING
3
6
1
2
1.40.6/05
pag. 1
pag. 1
4
5
pag. 1

Артикул

Название

Примечание

Количество

1

5167725

HYD CONNECTOR,M14/22 x 1.5 x 38mm L

1шт.

2

81844608

O-RING,11.10mm ID x 1.78mm

1шт.

3

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

23.5x30x1.5

1шт.

4

10280060

SEAL,M14.2 x 20 x 1.5

14x20x1.5

2шт.

5

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14 x 1.5

1шт.

6

47124182

RIGID TUBE

1шт.

Выбрано товаров: 6
